Series-477AV Handheld Digital Manometer for Pressure, Flow & Velocity ± Calibration

  • NG # 03343-HW-Omega-023

Manufactured By :
omega

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

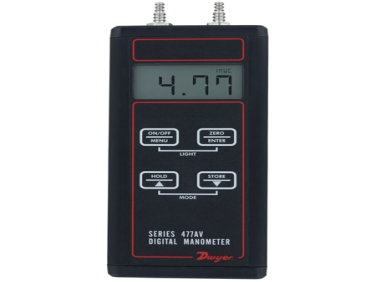

The Series 477AV Handheld Digital Manometer is now available with pressure, flow, and velocity measurements along with a number of other convenient features. The built-in air velocity and flow calculations provide accuracy and conserve time and error associated with manual calculations. Also featured on this unit are adjustable zero and span values for calibrating in the field, as well as a damping feature to compensate for the fluctuating of readings.

NIST CALIBRATION available in Product Configurator.

Specification

  • Service: Air and compatible gases.
  • Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C).
  • Pressure Hysteresis: ±0.1% of full scale.
  • Temperature Limits: 0 to 140°F (-17.8 to 60°C).
  • Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
  • Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
  • Display: 0.42" (10.6 mm) 4 digit LCD.
  • Units of Pressure: in w.c., ft. w.c., in Hg, psi, oz/in², mm w.c., cm w.c., mm Hg, mbar, Pa, kPa, hPa.
  • Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
  • Units of Flow: cfm, m3/h, m3/s.
  • Power Requirements: 9 V Alkaline battery, installed non-functional, user replaceable.
  • Weight: 10.2 oz (289 g).
  • Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) ID tubing. Two compression fittings for use with 1/8" (3.18 mm) ID x 1/4" (6.35 mm) OD tubing for 477AV-7 and 477AV-8 only.
  • Agency Approvals: CE.
