NG # 01559-HW-TESTO-031
MF # 01559-HW-TESTO-031
SKU # 01559-HW-TESTO-031

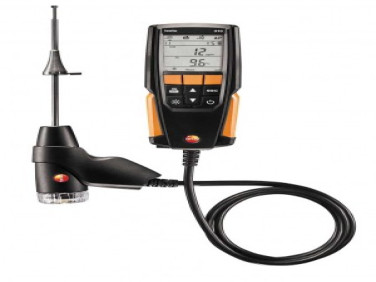

Sleek in design, this combustion analyzer kit features advanced sensor technology. With five different fuels to select from, the sensor provides the flexibility you need for several applications, such as checking furnace efficiency, boiler tuning, and water heater checks.
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing
Get A QuoteWith five different fuels to select from, this combustion analyzer provides flexibility for applications including, checking furnace efficiency, boiler tuning, and water heater checks. Additionally, it sets a new standard in affordable combustion analysis with its rugged housing, simple design, and advanced sensor technology.
Specification
| Temperature - Type K TC | |
|---|---|
| Measuring Range | -4 to 212°F (-20 to 100°C) |
| Resolution | 0.1°F (0.1°C) |
| Reaction Time | <50 seconds |
| Temperature - Type J TC | |
| Measuring Range | 32 to 752°F (0 to 400°C) |
| Accuracy | ±1.8°F; 32 to 212°F (±1°C; 0 to 100°C) ±1.5% of mv; >212°F (±1.5% of mv; >100°C) |
| Resolution | 0.1°F (0.1°C) |
| Reaction Time | <50 seconds |
| Flue Gas O2 | |
| Measuring Range | 0 to 21 Vol.% |
| Accuracy | ±0.2 Vol.% |
| Resolution | 0.1 Vol.% |
| Reaction Time t90 | 30 seconds |
| Flue Gas Draft | |
| Measuring Range | -8 to 8 inH2O (-20 to 20 hPa) |
| Accuracy | ±0.01 inH2O (-1.20 to 1.20 inH2O) ±0.03 hPa (-3.00 to 3.00 hPa) ±1.5% of mv (remaining range) |
| Resolution | 0.01 inH2O (0.01 hPa) |
| Efficiency | |
| Measuring Range | 0 to 120% |
| Resolution | 0.1% |
| General Specifications | |
| Temperature | Operating: 23 to 113°F (-5 to 45°C) Storage: -4 to 122°F (-20 to 50°C) |
| Display | Type: LCD Function: Backlit 2-line display |
| Power Supply | Battery: 1500 mAh, mains unit 5 V/1 A |
| Dimensions | 8 x 3 x 2" (201 x 83 x 44 mm) |
| Weight | Approximately 25 oz (700 g) with probe |
