NG # 01839-HW-TESTO-047
MF # 0563 0416
Quick, precise, and easy to use, this vane anemometer provides flow measurement and volume flow calculations in ventilation ducts and offers more flexibility with the cable-connected telescopic probe. In addition, it uses fast in-app (duct) configuration, graph history, second screen, and measurement data memory with the Smart App.
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing

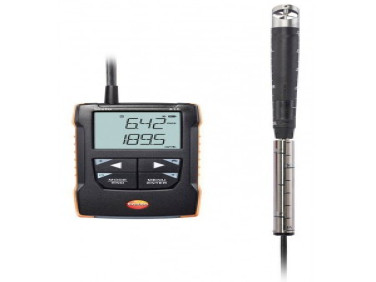

Get A QuoteQuick, precise, and easy to use, this vane anemometer provides flow measurement and volume flow calculations in ventilation ducts and offers more flexibility with the cable-connected telescopic probe. In addition, it uses fast in-app (duct) configuration, graph history, second screen, and measurement data memory with the Smart App. he testo 416 is an easy to use small vane anemometer with an attached vane probe on a telescoping handle to measure CFM in air ducts. This handheld digital vane anemometer allows you to switch between volume flow and velocity readings quickly.
Specification
| Measuring Range | 118.1 to 7874 fpm 0.6 to 40 m/s |
| Accuracy (±1 digit) | ±(39.4 fpm + 1% of mv) ±(0.2 m/s + 1% of mv) |
| Resolution | 0.1 fpm 0.1 m/s |
| Measurement Parameters | m/s, fpm, m3/h, cfm, l/s |
| Environmental Conditions | Operating temperature: Measuring instrument: 14 to 122°F (-10 to 50°C) Probe: 14 to 158°F (-10 to 70°C) Storage temperature: 14 to 122°F (-10 to 50°C) |
| Protection Class | Measuring instrument: IP40 Probe: IP20 |
| Housing Material | ABS + PC/TPE |
| Battery | Type: 3 x AA Life: 60 hours |
| Dimensions | Measuring instrument: 5.3 x 2.4 x 1.1" (134.6 x 60.9 x 27.9 mm) Probe: Length 13" (330.2 mm), Ø0.63" (Ø16 mm) Cable length: 5' (1.5 m) |
| Weight | 0.71 lbs (322 g) |
