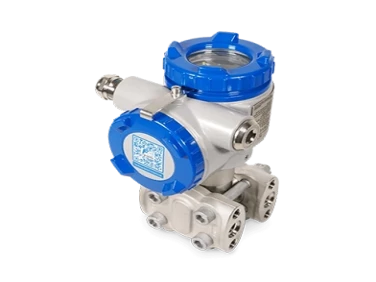

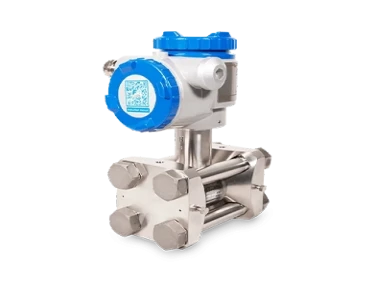

Get A QuoteDIFFERENTIAL PRESSURE TRANSMITTER – FKC : ACCURACY AND RELIABILITY FOR YOUR INDUSTRIAL PRESSURE MEASUREMENTS The differential pressure transmitter FKC from Fuji Electric is designed to provide optimal accuracy in pressure measurement across various industrial environments. Robust and reliable, it is suitable for applications requiring precise differential pressure control, ensuring efficient process management. FEATURES OF THE DIFFERENTIAL PRESSURE TRANSMITTER – FKC - High measurement accuracy thanks to silicon micro-machined sensor technology - Wide pressure range available to meet different industrial needs - Excellent long-term stability, reducing calibration requirements - Robust design with resistance to harsh environments - Integrated HART digital communication for easy system integration - ATEX-certified for hazardous areas - Compliance with SIL2 / SIL3 safety integrity levels APPLICATIONS The FKC differential pressure transmitter is used in industries such as petrochemicals, energy, water treatment, and food processing to monitor and regulate processes with high precision. ADVANTAGES Increased reliability thanks to robust design and excellent long-term stability Versatility with a wide range of pressure levels and configurations Guaranteed safety with certifications for demanding environments Reduced maintenance costs due to low drift and minimal calibration needs
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 1 6 32 130 500 3000 20000 |
| Weight per kg (without indicator) | 3,1 |
| Accuracy | ± 0.065% of the measurement range set as standard. An accuracy of ±0.04% is also available as an option. |
| Materials in contact with the process | Stainless steel 316 L, Hastelloy-C, Monel, Tantalue, Stainless steel 316 L + Gilding, Monel coating, Tantalue coating |
| Case materials | Low-copper aluminum alloy with polyester coating, or 316 L stainless steel |
| Membrane materials | Stainless steel 316 L Hastelloy-C Monel Tantalum Stainless steel 316 L and Gilding Gilding and Ceramics |
| Stability | ±0.1% of maximum scale for 10 years for digit 6 = 3, 5, 6, 8 and 9. |
| Elevation / Deletion | From -100 to +100% of maximum scale |
| Scale setting range | 1 to 1/100 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HARTTM 7 communication protocol |
| Process temperature | From +40° to +120°C (versions for higher temperatures are available) |
| Ambient temperature | From -40° to +85 °C |
| Power supply | 10.5 to 45 V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable between 0.04 and 32 secs |
| Zero and span adjustment | Via external sensor screw, local three-button display or HARTTM protocol |
| Electrical connections | M20x1.5" / 1/2 - 14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
