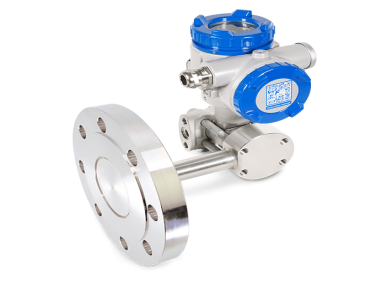

Get A QuoteFKE direct-mount pressure transmitters in the FCX-AIV family accurately measure a liquid level and convert it into a directly proportional 4-20 mA output signal. The heart of the measuring element is a micro-capacitive silicon transducer that has proven its worth in the process industry.
The digital signal processing carried out by the electronic unit offers outstanding accuracy and stability. The FCX-AIV family of pressure transmitters complies with integrity and safety levels SIL 2 (HFT=0) and SIL 3 (HFT=1) in accordance with IEC 61508 and IEC 61511 standards.
| Housing | L- or T-shaped housing |
| Measuring ranges (kPa) [e.max.] | 1 6 32 130 500 3000 |
| Weight per kg (without indicator) | 2-19 |
| Accuracy | ± 0.165% of the measurement range set as standard. An accuracy of ± 0.1% is also available as an option. |
| Materials in contact with the process | Stainless steel 316L, Hastelloy-C, Monel, Tantalum, Hastelloy-C276, Monel 400, Stainless steel 316L + PFA coating, Stainless steel 316L + Gold coating, Titanium, Zirconium |
| Case materials | Low-copper aluminum alloy with polyester or polyester coating or 316L stainless steel. |
| Membrane materials | Stainless steel 316L Hastelloy-C Monel Titanium Zirconium Stainless steel 316L and Gilding |
| Stability | ±0.2% of maximum scale for 10 years. |
| Elevation / Deletion | From -100 to +100% of maximum scale |
| Scale setting range | 1 to 1/100 of maximum scale |
| Measurement cycle | 40 ms |
| Communication protocol | HART™ 7 communication protocol |
| Process temperature | From +40° to +120°C (versions for higher temperatures are available) |
| Ambient temperature | From -40° to +85°C |
| Power supply | 10.5 to 45V DC |
| Output signal / Load resistance | 4-20 mA / 250 Ω typical |
| Damping | Configurable between 0.04 and 32 secs |
| Zero and span adjustment | Via external sensor screw, local three-button indicator or HART™ protocol |
| Electrical connections | M20x1.5" / 1/2 - 14 NPT / Pg13.5 |
| Options | Digital indicator, degreasing treatment, oxygen service, chlorine service, additional stainless steel identification plate |
