NG # 03594-HW-FUJI-011
Stock
10
in stock
Custom Pricing
Get A Quote
Stock
10
in stock
Custom Pricing

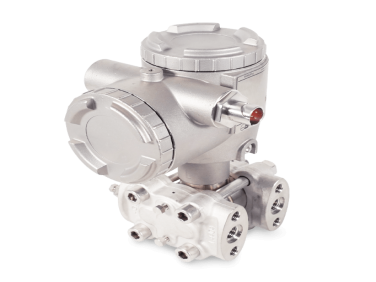

Get A QuoteThe differential pressure transmitter FCX-AII series is a device that accurately measures differential pressure and converts it into a directly proportional 4-20 mAcc output signal. It is used for differential pressure, flow, level or density measurements. The heart of the measuring element is a silicon micro-capacitive sensor, offset in the cell neck. In addition, the electronic unit benefits from the latest microprocessor technology.
Housing | L- or T-shaped housing |
Measuring ranges (kPa) [e.max.] | 1 6 32 130 500 3000 |
Weight per kg (without indicator) | 6 |
Accuracy | ± 0,07 % |
Materials in contact with the process | Stainless steel 316 L, Hast C276, Stainless steel 316, Stainless steel 316 L + gold plating, Stainless steel 318NL |
Case materials | Standard: low-copper aluminum alloy with polyurethane epoxy coating (2 layers) Optional: 316 stainless steel. |
Membrane materials | Stainless steel 316 L Hast C276 Stainless steel 316 L + gold plating |
Stability | ± 0.1% of max. scale for 3 years. |
Elevation / Deletion | Equal to the upper limit of static pressure. |
Communication protocol | HART 7 communication protocol |
Process temperature | -40 to +120°C (silicone oil) -20 to +80 °C (fluorinated oil) |
Ambient temperature | -40 to +60 °C (-25 to +55 °C for K3A) -20 to +60 °C (-20 to +55 °C for K3A ) for digital indicator (option) -20 to +60°C for fluorinated oil (optional) |
Power supply | 10.5 to 53 Vdc |
Output signal / Load resistance | 4-20 mA / 250 Ω typical |
Damping | Configurable from 0.12 to 32 seconds |
Zero and span adjustment | Zero and span are adjustable from the FXW communicator FXW communicator and with the external adjustment screw located on the electronic box. |
Electrical connections | M20 x 1.5 or ATEX explosion-proof cable gland, or Souriau subbase 8N35, or Sub-base Souriau 8N45S, or Souriau subbase 8N45, or SAIB NU25 subbase ref. 251-103-401 / M20 x 1.5 (compatible with 8N45 on the Park), or Jaeger base with M20 x 1.5 thread ref.536 006 006 |
Options | Analog indicator (accuracy: 1.5%), configurable digital indicator, oxygen service, degreasing treatment, additional nameplate |
