NG # 006314-HW-Dräger-014

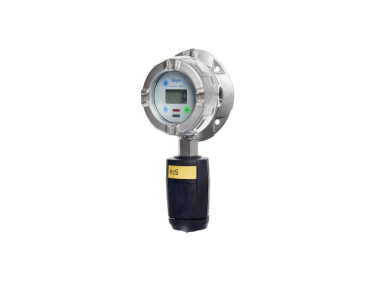

A compact gas detection device designed for standard applications, providing reliable monitoring of toxic gases or oxygen with a high-performance plug-and-play electrochemical sensor housed in a robust IP66-rated enclosure.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThis unit delivers dependable gas monitoring through a proven electrochemical sensor that installs easily and ensures accurate, stable readings. Its rugged, IP66-protected housing offers strong resistance to dust, water, and general industrial wear, making it well suited for everyday safety applications. With its compact design and straightforward setup, it provides an efficient and reliable solution for maintaining safe ambient air conditions.
| Type | Transmitter |
|---|---|
| Measuring Principle | Electrochemical |
| Cable entry | M20 or 3/4" NPT |
| Display | Yes |
| Intrinsic Safety | No |
| Flameproof | Yes |
| Increased Safety | Yes |
| SIL | SIL 2 (IEC 61508-2) |
| 4-20 mA | Yes |
| Bus | No |
| HART® | No |
| Wireless | No |
| Power Supply | 10 to 30 V CD, 3-wire |
|---|---|
| Temperature (operation) | -40°C - 65°C |
| Humidity | 0 to 100% r.h., non-condensing |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H × W × D) | 28x15x13 cm |
| Weight | 5 Kg |
| Housing Material | Epoxy coated copper-free aluminum or stainless steel SS316 L |
| Degree of protection (IP class) | IP65/66/67 |
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | Yes |
| CSA | Yes |
| CE marking | Yes |
| GOST (EAC) | Yes |
| Performance approval | No |
| Shipping approval (MED) | No |
