RFQ

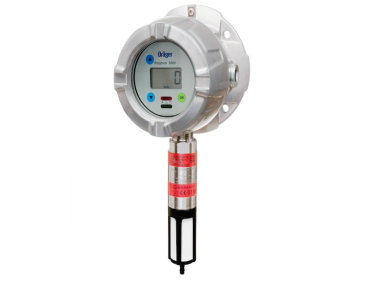

Dräger Polytron® 5310 IR

  • NG # 006317-HW-Dräger-017

A fixed gas detection device designed to monitor flammable gases at the lower explosion limit (LEL) using a reliable infrared sensing principle. Equipped with an infrared DrägerSensor® IR, it delivers fast, stable measurements without sensor poisoning or drift typically seen with catalytic sensors. The unit can be configured for methane, propane, or ethylene, ensuring precise detection across different industrial applications.

Manufactured By :
Dräger
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This detector provides continuous, accurate LEL monitoring using advanced infrared technology. Its gas-specific configuration options and long-term stability make it a dependable choice for facilities handling various hydrocarbons, including processing plants, storage areas, and hazardous work zones.

Specification

TypeTransmitter
Measuring PrincipleInfrared
Response time
Cable entryM20 or 3/4" NPT
DisplayYes
Intrinsic SafetyNo
FlameproofYes
Increased SafetyYes
SILSIL 2 (IEC 61508-2)
4-20 mAYes
BusNo
HART®No
WirelessNo

Technical Data

Power Supply10 to 30 VDC, 3-wire
Temperature (operation)-40°C - 65°C
Humidity0 to 100 % r.h., non-condensing
Pressure (hPa)700 - 1300
Dimensions (H × W × D)29.5x15x13 cm
Weight4 Kg
Housing MaterialEpoxy coated copper-free aluminum or stainless steel SS 316L
Degree of protection (IP class)IP65/66/67

Approvals

ATEXyes
IECExYes
ULYes
CSAYes
CE markingYes
GOST (EAC)Yes
Performance approvalYes
Shipping approvalNo
FMNo
