NG # 006318-HW-Dräger-018

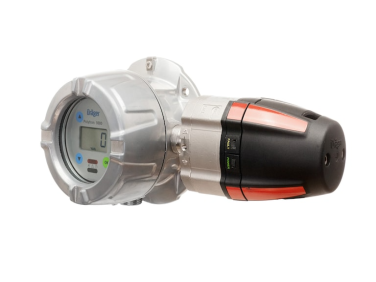

An advanced explosion-proof gas transmitter engineered for reliable detection of combustible gases in hazardous areas. It operates with a high-performance infrared Dräger PIR 7000 sensor, delivering fast response, excellent long-term stability, and resistance to contamination or sensor poisoning. Designed to detect most common hydrocarbon gases, it ensures accurate monitoring even in challenging industrial environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThis transmitter provides robust, infrared-based detection of combustible hydrocarbons with exceptional stability and durability. Its explosion-proof design and advanced sensing technology make it well-suited for refineries, chemical plants, and other applications requiring continuous, high-accuracy gas monitoring.
| Type | Transmitter |
|---|---|
| Measuring Principle | Infrared |
| Response time | 4 seconds |
| Cable entry | M20 or 3/4" NPT |
| Display | Yes |
| Intrinsic Safety | No |
| Flameproof | Yes |
| Increased Safety | Yes |
| SIL | SIL 2 (IEC 61508-2) |
| 4-20 mA | Yes |
| Bus | Yes |
| HART® | No |
| Wireless | No |
| Power Supply | 10 to 30 V DC |
|---|---|
| Temperature (operation) | -40°C - 77°C |
| Humidity | 0 to 100 % r.h., non-condensing |
| Pressure (hPa) | 700 - 1300 |
| Dimensions (H × W × D) | 28x15x13 cm |
| Weight | 5.7 Kg |
| Housing Material | Epoxy coated copper-free aluminum or stainless steel SS 316L |
| Degree of protection (IP class) | IP65/66/67 |
| ATEX | Yes |
|---|---|
| IECEx | Yes |
| UL | Yes |
| CSA | Yes |
| CE marking | Yes |
| GOST (EAC) | Yes |
| Performance approval | Yes |
| Shipping approval | No |
| FM | No |
