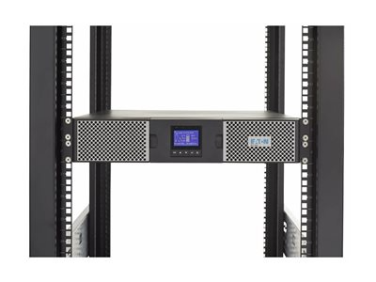

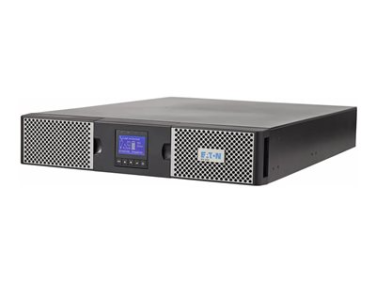

Eaton 9PX 9PX3000RTN - UPS - 2700 Watt - 3000 VA

  • NG # 03464-HW-Eaton-018

  • MF # 9PX3000RTN

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Delivering premium backup power and scalable battery runtimes, the Eaton 9PX UPS is the ideal solution for rack and stand-alone installations in harsh electrical and critical applications. With an advanced LCD screen interface and robust power management software, managing a UPS has never been easier with the 9PX-even in virtualized environments.

Specification

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Color
Black and silver
Power Device
UPS Technology
On-line
Input Voltage
AC 100/110/120/125 V
Input Voltage Range
AC 100 - 144 / 60 - 144 V
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA L5-30P
Power Output Connectors Details
6 x power NEMA 5-20R ¦ 1 x power NEMA L5-30
Output Voltage
AC 100/110/120/125 V ± 1%
Power Capacity
2700 Watt / 3000 VA
Circuit Protection
Circuit breaker
Efficiency
91%
Power Factor (PF)
0.99
Total Harmonic Distortion (THD)
3 %

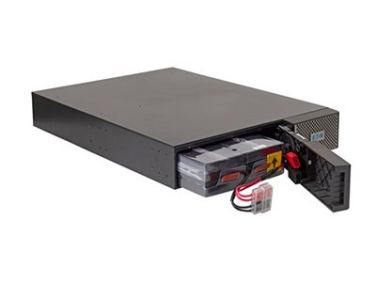

Battery
Technology
Lead acid
Run Time (Up To)
114 min at 400 Watts ¦ 20 min at 1000 Watts ¦ 12 min at 1500 Watts ¦ 9 min at 1800 Watts ¦ 5 min at 2700 Watts
Features
Maintenance free, sealed
Networking
Remote Management Interface
Ethernet, RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) ¦ 1 x USB ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x expansion slot
Miscellaneous
Included Accessories

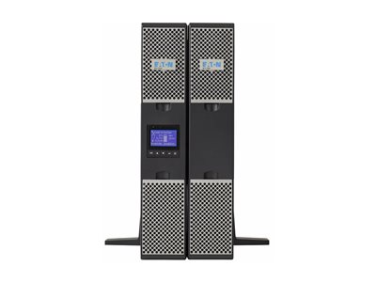

Tower stand, rack mounting rails
Cables Included
Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, LED indicators, cold-start function, automatic self-test, Remote Emergency Power Off (REPO)
Compliant Standards
ANSI C62.41, NOM, CISPR 22, IEC 62040-2, RoHS, cULus, VCCI Class B, FCC Part 15 Class B
Software / System Requirements
Software Included
Eaton Intelligent Power Protector
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Sound Emission
47 dB
Dimensions & Weight
Width
17.3 in
Depth
23.8 in
Height
3.4 in
Weight
63.05 lbs
Compatibility Information
Designed For
P/N: 744-A3122, 9PXEBM72RT
