Eaton 9PX G2 MBP6KIECG2 - bypass switch - 6000 Watt - 6000 VA

  • NG # 03929-HW-Eaton-022

  • MF # MBP6KIECG2

Manufactured By :
Eaton
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Compatible with Eaton 9PX6KIECG2 9PX G2 UPS System

The MBP6KIECG2 works with Eaton's 9PX6KIECG2 UPS system. The bypass lets you service or replace the UPS system without powering down any equipment and risking costly downtime. Power passes directly from a power source to equipment when in bypass mode.

Versatile Connection and Installation Options

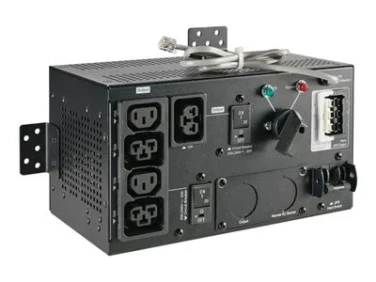

The MBP6KIECG2 features hardwired input, as well as two C13 and three C39 outlets. You can mount the maintenance bypass to the rear of the UPS or extended battery module (EBM) without taking up additional rack space. You can also mount the bypass on the side or top of the rack, on a wall or adapt it for tower installation using the included hardware.

Specification

General
Device Type
Bypass switch - rack-mountable / wall mountable
Height (Rack Units)
0U
Power Device
Frequency Provided
50/60 Hz
Input Connectors
1 x hardwire, power NEMA L6-30P
Power Output Connectors Details
2 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C39
Output Voltage
AC 208/220/230/240 V 50/60 Hz
Power Capacity
6000 Watt / 6000 VA
Output Waveform
Sinewave
Miscellaneous
Included Accessories
2 cable glands, mounting hardware
Rack Mounting Kit
Included
Compliant Standards
cUL Listed, Mexico NOM, RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 95% RH (non-condensing)
Dimensions & Weight
Width
9.4 in
Depth
4.9 in
Height
5.1 in
Compatibility Information
Designed For
P/N: 9PX6KIECG2
