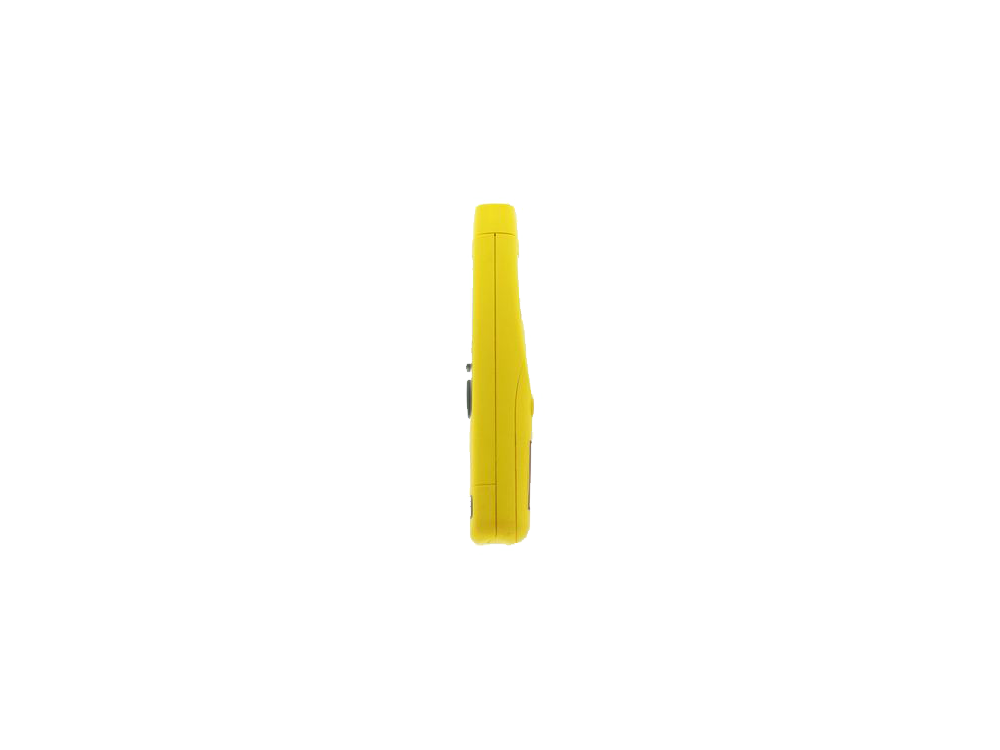

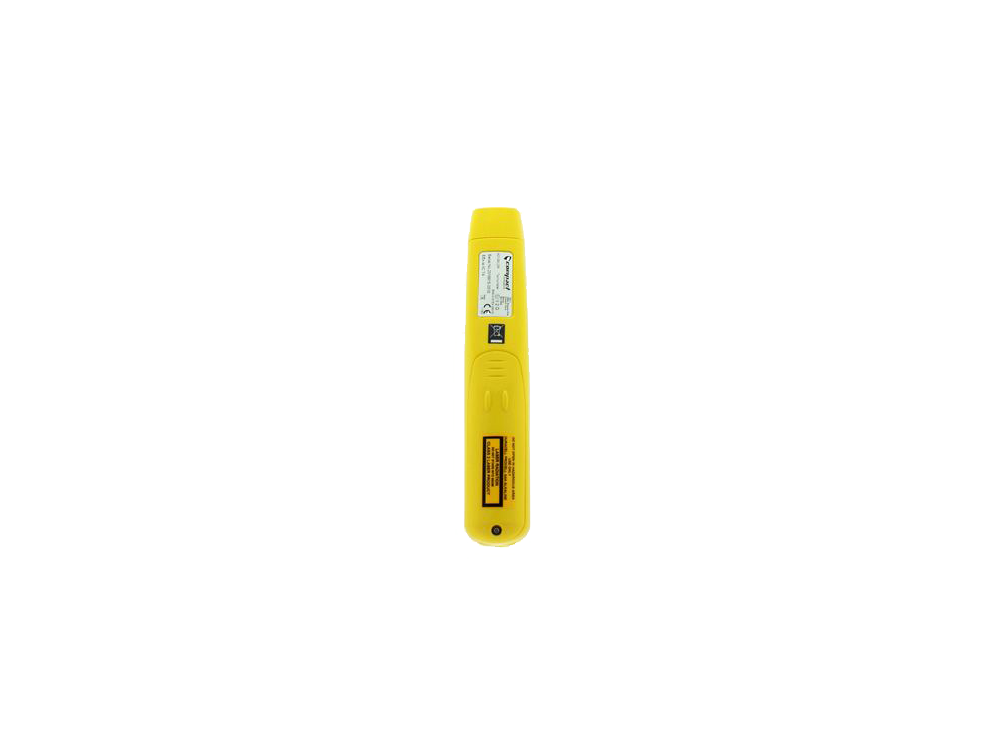

Ecom Intrinsically Safe Measuring Tool - A2109/LSR (Discontinued)

NG # 00436-HW-ECOM-037

The A2109/LSR stands out as an optimal measurement instrument for swiftly and precisely capturing laser measurements on rotating components. Its revolutionary form factor enhances measurement speed, making it an efficient tool for accurate assessments.

Manufactured By :

ecom

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

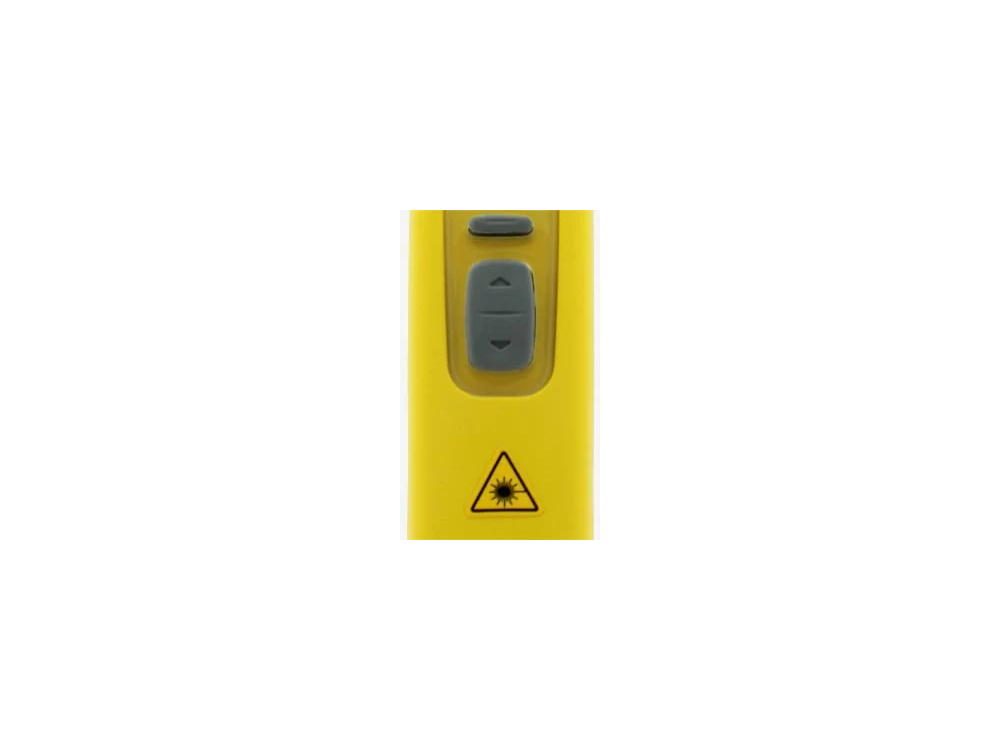

The simple 3 push-button operation and the large clearly-readable display with over-head facility enables a wide, flexible field of application. This light-weight device provides an easy one handed operation and facilitates the carrying-out of measurements after which it can be stowed away in the tool box or jacket pocket.

Applications are to be found in the process controlled field for the contactless measurement of the revolutions of a shaft at a safe distance using a laser beam. For boiler mixers, the rotor speed can be read from the drive shaft at a safe distance and documented.

Motor revolutions can be acquired contactlessly in the immediate vicinity without having to open or remove safety fittings such as covers or protective grills. The duration of pulses or the intervals between them can be simply, easily and accurately ascertained. Data can be simply acquired within Ex-protected areas without having to switch machines off because laser-accurate measurements can be made at a safe distance through protective devices thus complying with safety regulations. The transport speed of conveyor belts can be exactly measured using the add-on adapter and thus directly recorded in the documentation.

Specification

MEASURING SYSTEM:	Optical / laser reflection
LASER CLASS:	Class 2
ROTATIONAL SPEED:	rpm, rps
SPEED:	m/min, m/sec yd/min, yd/sec ft/min, ft/sec
TIME INTERVAL:	sec.
MEASUREMENT RANGE:	3 … 99,999 rpm, 0.05 … 1,666 rps autoselect
ACCURACY (AT VELOCITY):	0.02 % ±1 Digit
RESOLUTION:	0.001 digit or ±1 digit fix (selectable in autorange)
MEASUREMENT ANGLE:	max. ±80° to the measurement object
MEASUREMENT DISTANCE:	max. 2 m
BATTERY-LOW	Display
AMBIENT TEMPERATURE	-20 °C … +40 °C (-4 °F … +104 °F)
STORAGE TEMPERATURE	-20 °C … +40 °C (-4 °F … +104 °F)
OPERATING TIME	max. 6 months
POWER SUPPLY	4x LR03 (AAA) according to IEC (type approved)
DIMENSIONS	215 mm (260 mm) x 40 mm x 40 mm (~ 8.5" (10.2") x 1.6" x 1.6") w/o (with) adaption wheel
WEIGHT	approx. 360 g (~ 12.7 oz), with batteries

CATALOGS

Data Sheet
