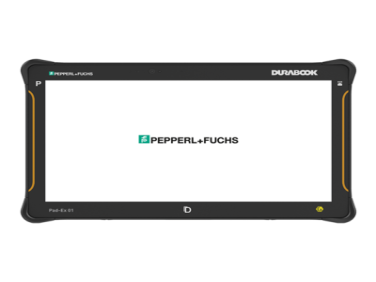

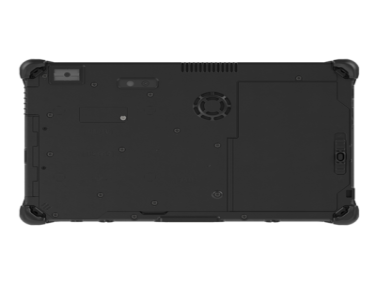

Get A QuoteIn addition to a high level of robustness and its neat, compact form, the Pad-Ex® 01 P12 from Ecom- Pepperl + Fuchs offers the latest Intel® 12th generation processors with Intel® Iris® Xe graphics, delivering outstanding performance and visuals. In addition, the super-fast data transfer of Thunderbolt™ 4, Intel® Wi-Fi 6E and Bluetooth® V5.3 always ensures smooth processing without congestion.
The combination of robust features and a large screen size with superior performance is ideal for field workers in all industries. It is an ideal complement to or can even replace a desktop PC, laptop or wall-mounted display.
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 16 ATEX 1 163 X |
| ATEX certification gas | Ex II 3G Ex ic IIC T4 Gc |
| ATEX certification Dust | Ex II 3D Ex ic IIIB T135°C Dc |
| ATEX certification mining | - |
| IECEx Certification no. | IECEx EPS 16.0072X |
| IECEx gas certification | Ex ic op is IIC T4 Gc IP64 |
| IECEx dust certification | Ex ic op is IIIB T135°C Dc IP64 |
| IECEx certification mining | - |
| Ingress Protection | IP64 |
| Operating system | Windows 11 Pro 64bit, 2.0 TPM |
| Processor | Intel Core i5-1235U VPro 4,4 Ghz |
| Memory | 256 GB (+ expandable to 2 TB optional) |
| Screensize | 11" |
| Touchscreen | Capacitive multitouch operable with handgloves |
| Camera | 8 MP rear with LED flash and autofocus (optional) + 2 MP front side |
| Mobile connectivity | Optional |
| Frequencies | 4G, 3G |
| Battery Capacity | 3900 mAh |
| Bluetooth | 5.3 |
| Wifi | Wi-Fi 6.0E |
| Height (mm) | 192 |
| Width (mm) | 298 |
| Thickness (mm) | 20 |
| Weight with batteries (gram) | 1200 gram |
