NG # 00425-HW-ECOM-026

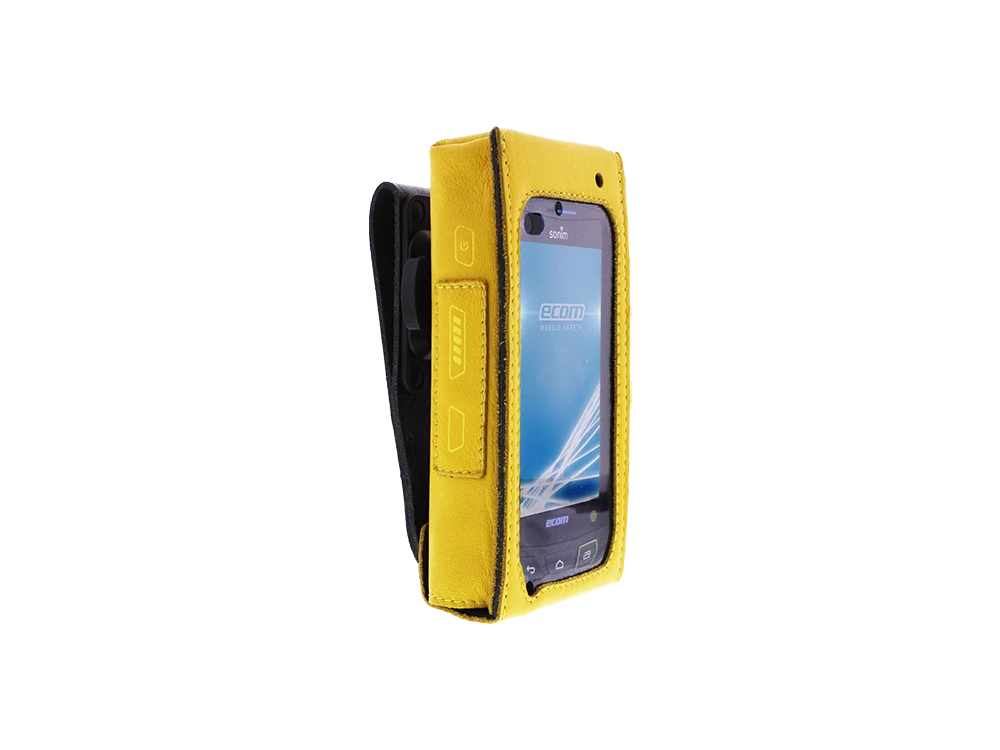

Ecom Smart-Ex 01 holds certifications from ATEX and IECEx. The Smart-Ex variant equipped with a camera is available for North America, unlocked with a Surelock license and installation. The package includes a charger, safety box, belt clip, and a multi-tool.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

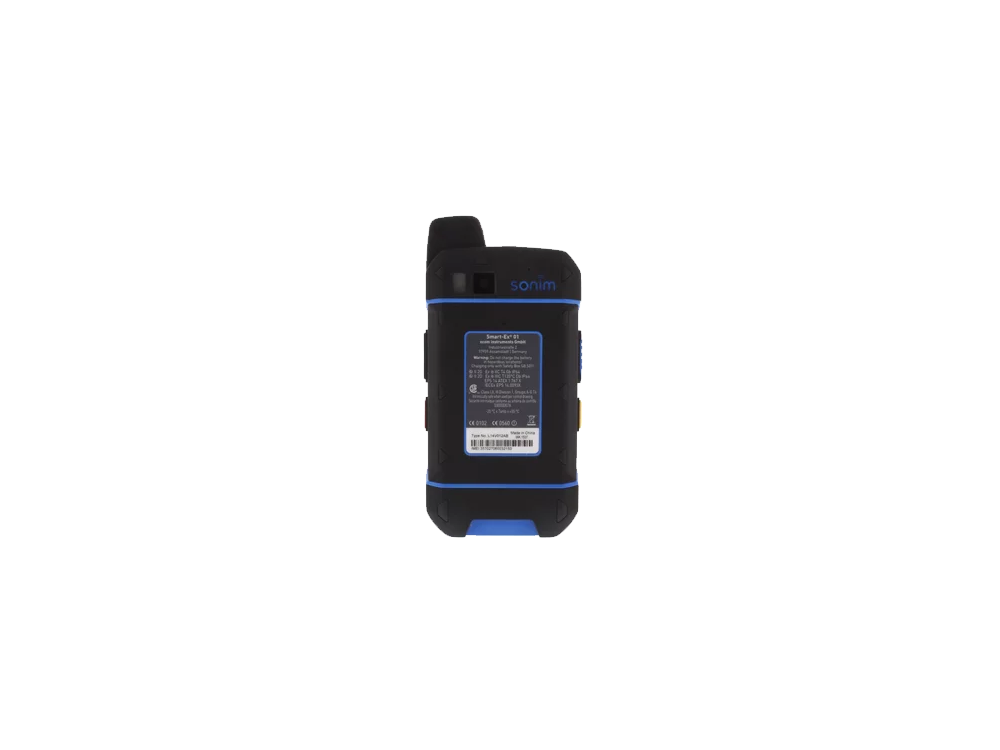

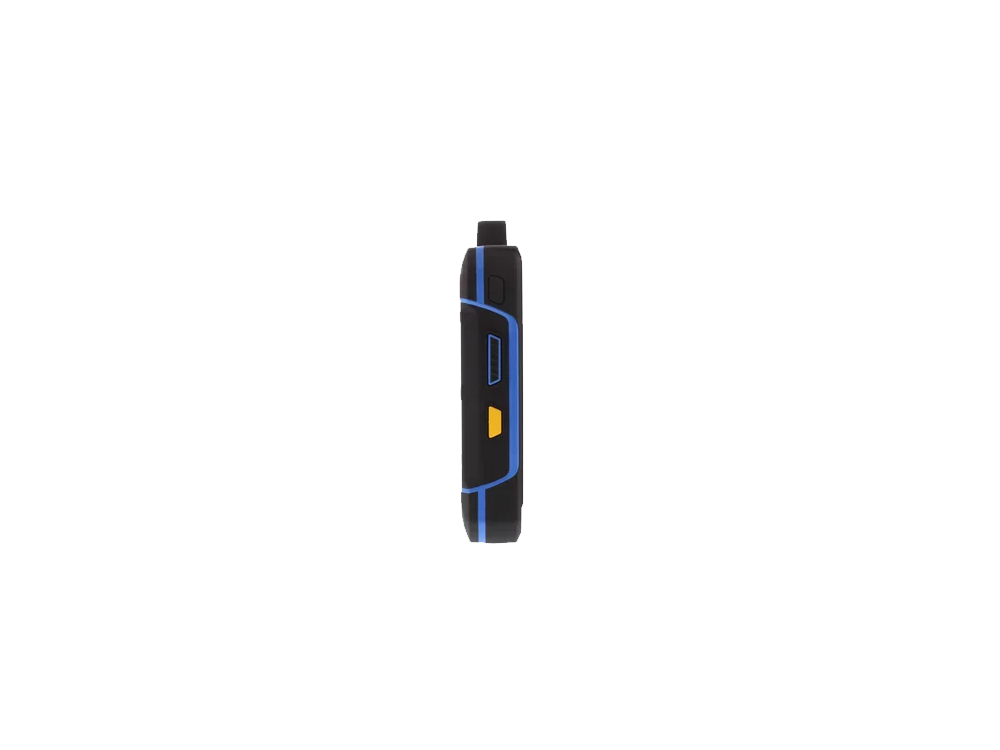

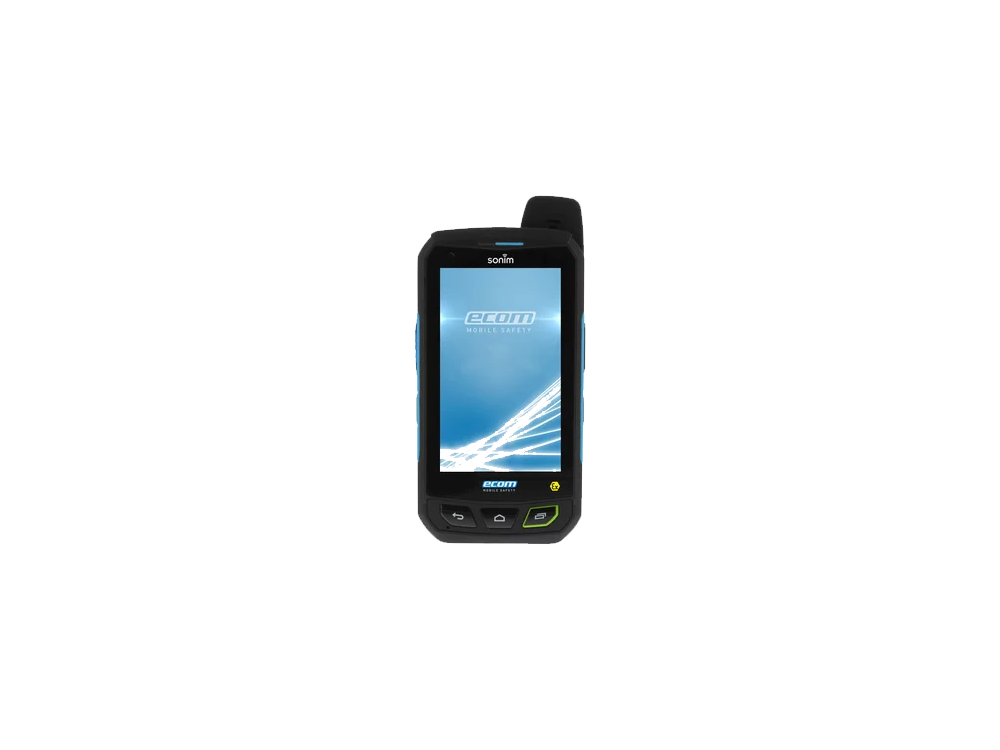

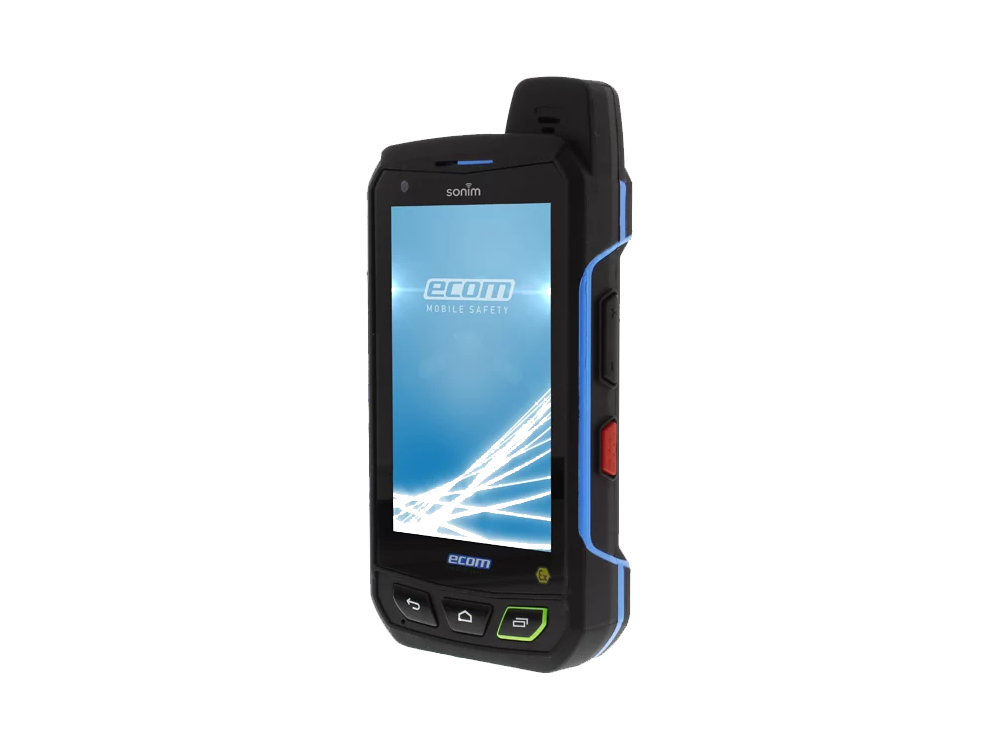

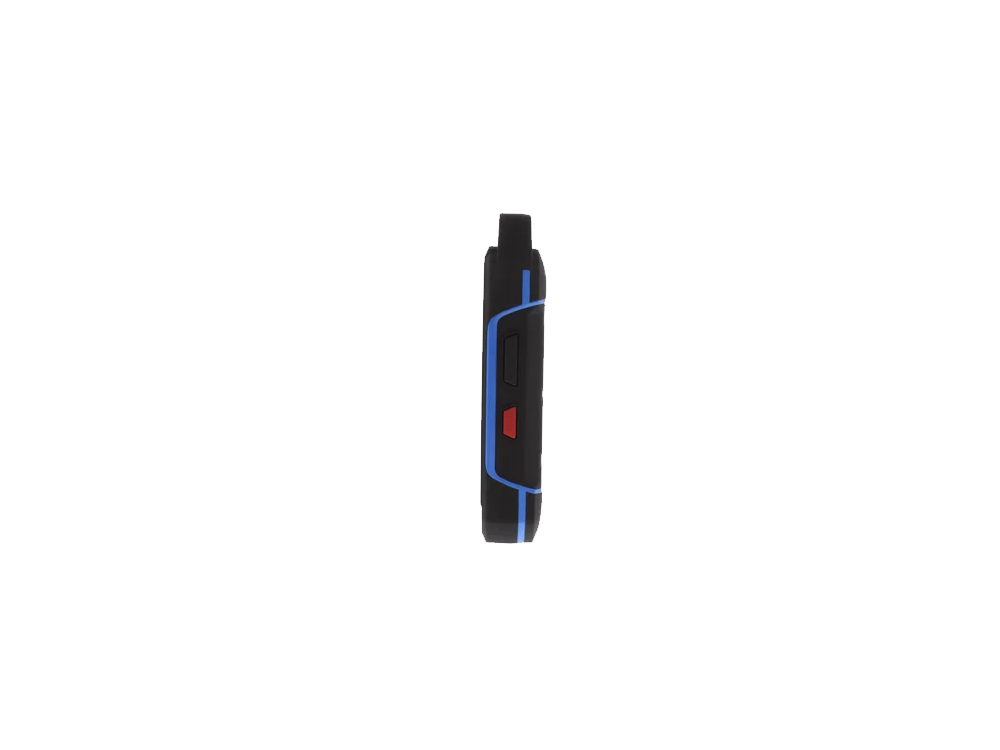

Get A QuoteThe Ecom Smart-Ex 01 Instruments is a next-generation touch screen intrinsically safe smartphone that is ATEX and IECEx certified, as well as compliant with the Australian and New Zealand RCM network and electrical safety standards. It is the only 4G/LTE phone certified for usage in Zone 1, Zone 21, and Div 1 hazardous areas. It is SIM-free, which enables connectivity to any network in the world. Smart-Ex 01 underwent quality control in Germany, utilizing 30 years of experience in the Ex-market.
| Operating System | Android 5.1.1 or Android 4.4.4 |
| Memory | 16 GB Internal Storage / 1GB RAM |
| Expandable SD-Card | Not Available (12 GB Usable Memory Only) |
| Chipset | MSM8926 1.2 GHz Quad core |
| Band | Cellular frequency bands EU variant: 4G LTE: B1, B3, B7, B8, B20, B38 3G UMTS: 850 / 900 / 1900 / 2100 MHz 2G GSM: 850 / 900 / 1800 / 1900 MHz |
| Applications | Google Play Store certified |
| Sensors | G-Sensor, Gyroscope |
| Connectivity | |
| Bluetooth | BT4.0 / BLE (Low Energy) |
| WiFi | 802.11 a / b / g / n dual-band, WiFi Direct, WiFiHotspot |
| GPS | GPS, GLONASS |
| Email Client | EAS, Gmail, POP3, IMAP |
| Physical Characteristics | |
| Ambient Temperature | Smart-Ex 01 -20 °C to +55 °C / Smart-Ex 01M 0 °C to +50 °C |
| Device Weight | 370g |

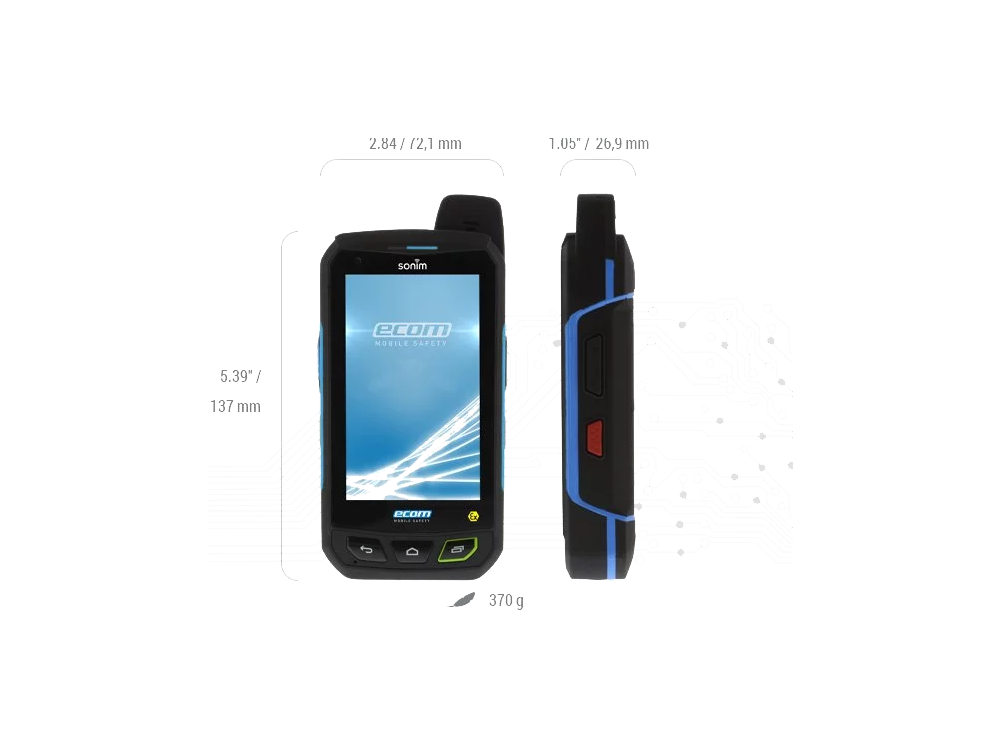

| Device Size | 137 x 72,1 x 26,9 mm (5.39“ x 2.84“ x 1.06“) |
| Protection Class | IP-68 |
| Ports | 3.5 mm audio connector |
| Screen Size | 4.0 inch |
| Screen Type | Corning Gorilla® Glass 2 with Glove Touch, Blanview Display |
| Battery Capacity (mAh) | 3600 mAh |
| Battery Life | Up to 1000 hours Stand by, up to 40 hours talk time |
| Speaker | 19 mm Loud Speaker with Gore® Protective Vents, Output up to 103 dB |
| Microphone | Dual Mic Solution with Noise cancellation |
| Multimedia | |
| Camera | 8 MP auto focus rear, 1MP fixed focus front |
| Video Streaming | Support AV I, MP4, 3GPP |
Data Sheet
