NG # 00416-HW-ECOM-017
The thinnest tablet computer globally designed for Zone 2 / DIV 2 applications, measuring just 13.6 mm / 0.54" inclusive of the protective case.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteLightweight and compact, operating on Android™ 5.1.1 (optionally 4.4.4) the Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance. The 8“ screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems.
Built-in cameras and full range of wireless capability allowing equipment defects to be captured as inspection and maintenance work is executed, and instantly visible to those who need to diagnose the issue and determine the follow-on actions.
Specification
| OPERATING SYSTEM | Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat) |
| PROCESSOR | Quad core 1.2 GHz processor |
| MEMORY AND STORAGE |
RAM 1.5 GB ROM 16 GB, with microSD up to 64 GB (optional) |
| WEIGHT | 562,1g |

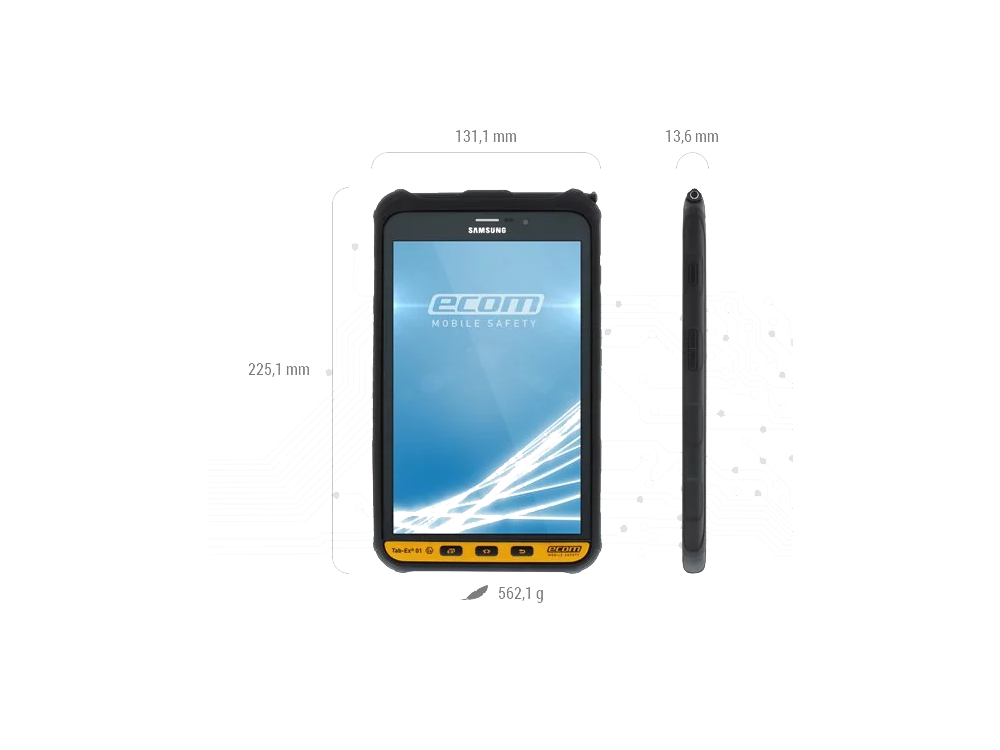

| DIMENSIONS | 131,1 x 225,1 x 13,6 mm (incl. protective case) world's thinnest Zone 2 / DIV 2 tablet - 13,6 mm |
| DISPLAY | 8" TFT display with 1280 x 800 pixels |
| ENVIRONMENTAL | Operating temperature -20 ... +55 °C |
| WWAN | 4G LTE* (optional) Category 4: 800 / 850 / 900 / 1800 / 2100 / 2600 UMTS (3G) / HSPA (3.5G): 850 / 900 / 1900 / 2100 GPRS / EDGE (2G): 850 / 900 / 1800 / 1900 |
| BLUETOOTH® | Bluetooth SmartReady LE 4.0 |
| WIRELESS LAN | WiFi 802.11 a/b/g/n |
| POWER | up to 11 hours battery life / 4450 mAh |
| CAMERA | 3 MP with rear camera Flash with Barcode Scanner capability 1.3 MP front camera |
| SECURITY | Samsung KNOX™ |
| PROGRAMMABLE KEYS | Yes |
