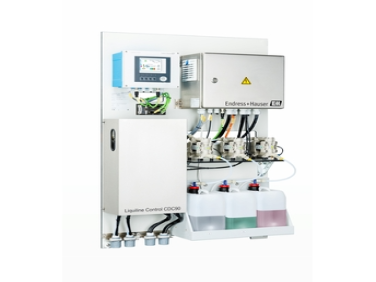

Endress+Hauser Cleaning and calibration system Liquiline Control CDC90

  • NG # 006212-HW-ENDRESS-012

Liquiline Control CDC90 is an automated plug-and-play system that cleans, calibrates, and adjusts Memosens pH and ORP sensors, reducing manual maintenance while ensuring consistently reliable and safe measurement in all industries.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

CDC90 enhances process safety and performance by automating all key maintenance tasks for pH/ORP sensors, delivering reproducible results, minimizing chemical use, and integrating effortlessly into any control system—even in hard-to-access or hazardous environments.

Specification

Measuring principle

Potentiometric

Application

Increased occupational safety by minimizing maintenance and servicing measures.
Customizable cleaning and calibration cycles for up to two measuring points.
Minimization of operating costs and buffer and cleaning agent consumption through smart media distribution and dosing.

Installation

Complete automated cleaning and validation system including a selectable retractable holder

Characteristic

Fully assembled system with powder-coated or stainless steel pneumatic control unit.
All non-ex applications

Measuring principle

Automated cleaning and calibration of Memosens pH and ORP sensors installed in retractable assemblies.

Design

Complete cleaning and calibration system including dosing pumps and canisters for buffer and cleaning solutions for connection to various retractable assemblies and sensors

Dimension

268 x 1170 x 770 mm (l x h x w)
10.55 x 46.06 x 28.74 inch (l x h x w)

Connection

DCS/PLS connection on Modbus TCP, Ethernet IP, Profinet, ProfibusDP and current in/ output

Input

1 to 2x Memosens digital sensor
1x 0/4 to 20mA input
4x digital input

Output / communication

DCS/PLS connection via Modbus TCP, EtherNet/IP, PROFINET, PROFIBUS DP, digital and analog signals

Additional certifications

UKCA, CSA general purpose

CATALOGS

Cleaning and calibration system Liquiline Control CDC90
