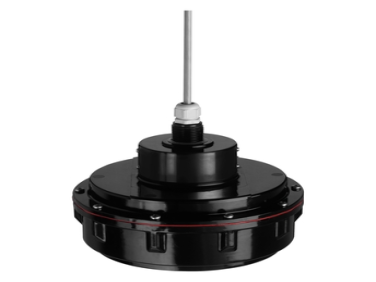

Endress+Hauser Ultrasonic measurement Time-of-Flight Prosonic FDU95

  • NG # 006210-HW-ENDRESS-010

The FDU95 delivers reliable, maintenance-free ultrasonic level measurement for coarse and powdery bulk solids with long measuring ranges up to 45m and robust performance in harsh and hazardous environments.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Engineered for demanding bulk material applications, the FDU95 ensures stable non-contact level monitoring unaffected by dielectric properties, density, or humidity. With long-range capability, rugged IP68 protection, and temperature-resistant construction up to 150°C, it excels in silos, crushers, stockpiles, and conveyors. Integrated temperature compensation enhances accuracy, while optional Dust-Ex and Gas-Ex approvals ensure safe use in explosive atmospheres. Automatic detection with FMU90/FMU95 transmitters and a self-cleaning sensor design simplify commissioning and minimize maintenance requirements.

Specification

Measuring principle

Ultrasonic

Characteristic / Application

Separated version with field housing or top hat rail housing for control cabinet instrumentation, 300 m in-between sensor and transmitter

Supply / Communication

4-wire (HART, PROFIBUS DP)

Accuracy

+/- 2 mm + 0.17% of measured distance

Ambient temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)

Process temperature

-40 °C...80 °C
or 150 °C,
(-40 °F...176 °F
or 302 °F)

Process pressure / max. overpressure limit

0.7 bar...1.5 bar abs
(10 psi...22 psi)

Main wetted parts

UP (unsaturated polyester)

Process connection

G / NPT 1"

Blocking distance

0.7 m / 80 °C,
(2.3 ft / 176 °F),
0.9 m / 150 °C,
(2.9 ft / 302 °F)

Max. measurement distance

45 m (148 ft)

Communication

Transmitter:
4...20 mA HART
PROFIBUS DP

Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI,UK Ex

Options

Second 4...20 mA output

Components

Transmitter:
FMU90, FMU95
