NG # 006205-HW-ENDRESS-005

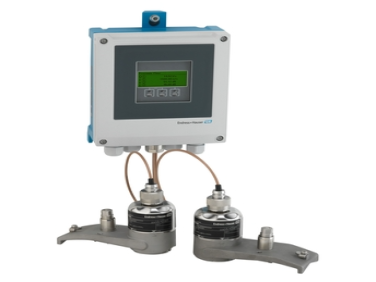

Prosonic Flow W 400 is a noninvasive ultrasonic clamp-on flowmeter designed for safe, cost-effective, and maintenance-free measurement of conductive and non-conductive liquids, providing high accuracy with minimal installation requirements.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteProsonic Flow W 400 enables bidirectional flow measurement without process interruption, independent of pressure, density, or liquid conductivity. With FlowDC technology, accurate performance is ensured even with extremely short inlet runs, expanding installation flexibility. Its maintenance-free coupling system and long-term stable sensing reduce lifecycle costs, while the integrated web server simplifies operation and remote access. Heartbeat Technology delivers continuous diagnostics, verification, and monitoring for superior process transparency and safety.
Ultrasonic flow
Clamp-on meter with Heartbeat Technology and web server for the water and wastewater industry.
Short inlet run thanks to FlowDC.
Bidirectional measurement for water and wastewater as well as process water and hydropower plants.
Low capital investment – cost-effectiveness increases with pipe diameter (up to DN 2000/80"). Long-term stable signal – maintenance-free permanent mounting from outside with coupling pads. Reliable measurement on various pipe materials – sensor for GRP and plastic pipes available.
Mounting without process interruption. Wide nominal diameter range: DN 15 to 4000 (½ to 160"). Medium temperature up to +130 °C (+266 °F).
Safe operation – no need to open the device due to display with touch control, background lighting. Full remote access – web server. Integrated diagnostics, verification and monitoring – Heartbeat Technology.
Transmitter housing made of durable polycarbonate or aluminium. Remote version for wall mounting. Integrated data logger: measured values monitoring.
DN15 to 4000 (1/2 to 160")
Clamp on system:
Sensor holder 1.4301 (304), 1.4404 (316L)
Sensor housing 1.4301 (304), 1.4404 (316L)
Strapping bands 1.4301 (304), 1.4404 (316L)
Volume flow, Flow velocity, Sound velocity
Volume flow:
±3% o.r. for DN15
±2% o.r. for DN25 to 200
±2% o.r. above DN200
0 to 15 m/s (0 to 50 ft/s)
N/A
–40 to +130 °C (–40 to +266 °F)
Sensor DN 15 to 65: -40 to 130°C
Sensor DN 50 to 4000: -40 to 130°C
N/A
Wall-mounted housing
Polycarbonat; AlSi10Mg, coated
Transmitter: IP66/67, Type 4X enclosure
Sensor: IP66/67, Type 4X enclosure, IP68, Type 6P enclosure (optional)
4‐line backlit display with touch control (operation from outside)
Configuration via local display, web browser and operating tools possible
3 ouputs:
4‐20 mA/4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Pulse/frequency/switch output (passive)
Modbus RS485
Status input
HART
AC 100 to 240 V / AC/DC 24 V
cCSAus
Other approvals and certificates
CE, C-tick marking, EAC-marking
Flowmeter verification for all frequencies except 0.3 MHz, reference line size: 5 MHz DN 50, all other frequencies DN 100
Verification performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a
Marine approvals and certificates
