NG # 00448-HW-Fluke-009
The first tester to automate MPO fiber testing, automatic testing of all fibers in MPO connectors, ensures correct end-to-end connectivity of MPO fiber trunks, on-board MPO connector, simple user interface, and more.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

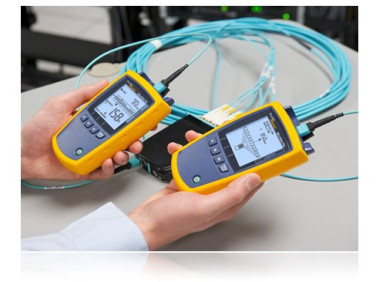

Get A QuoteMultiFiber Pro takes the complexity out of testing MPO trunks for loss and polarity. With an on-board MPO connector, it is the first tester to automate the MPO fiber-trunk testing process without using a fan-out cord. The power meter/light source boasts industry-first functions such as automatic scanning of all twelve fibers and display of test results in an easy-to-read bar graph. These innovative features allow MultiFiber Pro kits to eliminate the complexity of testing MPO trunks, making it 90 percent faster than the traditional simplex test methods.
Specification
| Operating temperature | -10ºC to +50ºC |
| Storage temperature | -20ºC to +50ºC |
| Operating humidity | 95% (10ºC to +35ºC) non-condensing 75% (35ºC to +45ºC) non-condensing Uncontrolled <10ºC |
| Operating altitude | 4,000 m |
| Storage altitude | 12,000 m |
| Vibration Random | 2 G, 5 Hz to 500 Hz |
| Optical Power Meter (Specifications apply at 23ºC (73ºF), unless otherwise noted.) | |
| Detector type | InGaAs |
| Calibrated wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
| Measurement range | 0 dBm to -50 dBm |
| Power measurement linearity | ±0.1 dB1 |
| Power measurement uncertainty | ±0.35 dB |
| Power measurement repeatability | < 0.10 dB |
| Display resolution, dB or dBm | 0.01 |
| Power display units | dBm, mW, μW |
| User-selectable limit for loss | 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0 dB |
| Auto wavelength detection | Yes |
| Polarity detection | Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities |
| 2 kHz detection | Yes |
| Record storage | 3000 records, one fiber per record (250 12-fiber cables) |
| External interface | USB 2.0, full speed |
| Optical connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 ?m, 50 ?m, and singlemode fibers. Connector has a self-closing, protective cover. |
| Power requirement | 2 AA alkaline batteries |
| Battery life2 | >30 hours (typical) |
| Automatic power-off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
| Low battery warning | Low battery icon blinks |
| Size | 5.7 in x 3.2 in x 1.5 in (14.5 cm x 8.0 cm x 3.9 cm) |
| Weight | 10.9 oz (309 g) |
| 850nm Source (Specifications apply at 23ºC (73ºF), unless otherwise noted) | |
| Emitter type | LED: 850 nm |
| Wavelength | 850nm Source (Specifications apply at 23ºC (73ºF), unless otherwise noted) |
| Spectral width (FWHM) | 850 nm: +/- 50 nm (typical) |
| Output power | 850 nm: =24 dBm. Max difference between channels +/-1dB |
| Power output stability3 | ≤ ±0.1 dB over 8 hours |
| Encircled flux | Meets ANSI/TIA-526-14-B, ISO/IEC 14763-3, and IEC 61280-4-1 for 50/125 μm at the source’s optical connector. |
| Optical connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 μm and 50 μm. |
| Modes | 2 kHz modulated, auto wavelength |
| Power requirement | 2 AA alkaline batteries |
| Battery life | >30 hours (typical) |
| Automatic power-off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
| Low battery warning | Low battery icon blinks |
| Size | 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1 cm) |
| Weight | 10.9 oz (309 g) |
