NG # 00484-HW-Fluke-047

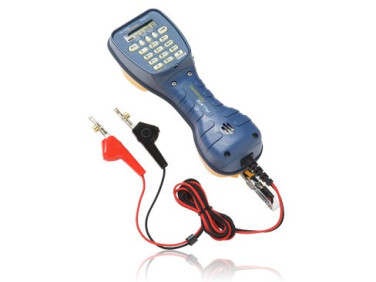

Fluke Networks’ new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments, providing perfect line diagnostic clarity.
| Electrical | |
| Current Range (Off-Hook) | 10 mA to 100 mA |
| DC Resistance | |
| Off-Hook | 150 O?nominal |
| On-Hook | >3 M O |
| AC Impedance | |
| Off-Hook | 600 O?nominal; 300 Hz to 3400 Hz |
| On-Hook | >120 kO 300 Hz to 3400 Hz |
| Rotary Dial Output | |
| Pulsing Rate | 10 pps ±1 pps |
| Break/Make Ratio | 60/40 |
| Interdigit Interval | >300 ms |
| Resistance During Break | >100 kO |
| DTMF Output | |
| Tone Frequency Error | ±1.5 % maximum |
| Tone Level | -3 dBm combined (typical) |
| High versus Low Tone Difference | 2 dB ± 2 dB |
| Memory Dialing | |
| Memory Capacity | 10 speed dial memories plus one last number redial memory |
| Digit Capacity | 23 digits per memory |
| PBX Pause Duration | 4 seconds |
| Hook Flash Duration | User programmable; default of 600 ms |
| Automatic Speaker Shut Off Duration | User programmable; default of 2 minutes |
| Battery | 9 V alkaline battery |
| Physical | |
| Measurement | 10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm) |
| Weight | Less than 1.5 pounds (0.68 kg) with one belt clip |
| Water Resistance | Designed to be rain and moisture resistant. |
| Drop Test | Passes 20 foot drop test |
| Environmental | |
| Temperature Range | |
| Handset speech and dialing functions | -22°F to 140 °F (-30°C to 60°C) |
| LCD function | -13°F to 140°F (-25°C to 60°C) |
| Storage | -22°F to 150°F (-30°C to 66°C) |
| Altitude | To 10,000 ft. (3,000 m) max |
| Relative Humidity | 95% to 30°C 75% to 40°C 45% to 50°C 30% to 60°C |
| Safety | Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2 |
| EMC | Complies with EMC EN61326-1 |
TS® 52 PRO Test Sets Data Sheet
