NG # 00459-HW-Fluke-022

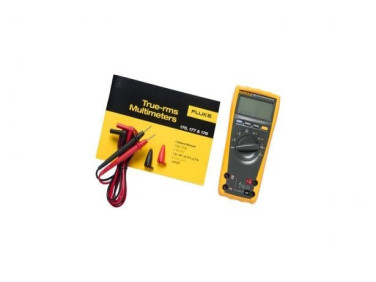

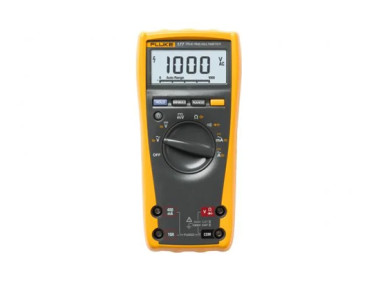

With its precision, reliability, and ease of use, the Fluke 177 Digital Multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, the Fluke 177 Includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteWith the Fluke 177 Digital Multimeter you get True-RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, the Fluke 177 provides 0.09% basic accuracy, a digital display with analog bar graph and backlight. Plus a limited lifetime warranty.
| Voltage DC | Accuracy1 | ±(0.09% + 2) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Voltage AC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Current DC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Current AC | Accuracy1 | ±(1.5% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Resistance | Accuracy1 | ±(0.9% + 1) |
| Max. resolution | 0.1 Ω | |
| Maximum | 50 MΩ | |
| Capacitance | Accuracy1 | ±(1.2% + 2) |
| Max. resolution | 1 nF | |
| Maximum | 10,000 µF | |
| Frequency | Accuracy1 | ±(0.1% + 1) |
| Max. resolution | 0.01 Hz | |
| Maximum | 100 kHz | |
| 1. Accuracies are best accuracies for each function | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -30°C to +60°C | |
| Humidity (without condensation) | 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C) | |
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV | |
| Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
| Mechanical and General Specifications | ||
| Size | 43 x 90 x 185 mm | |
| Weight | 420 g | |
| Warranty | Lifetime | |
| Battery life | Alkaline ~200 hours typical, without backlight | |
Fluke 177 True-RMS Digital Multimeter Data Sheet
