NG # 00487-HW-Fluke-050

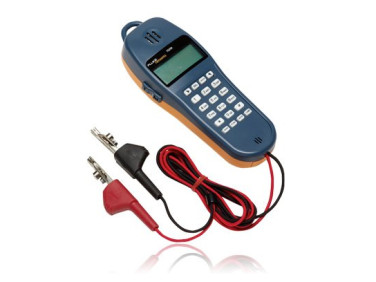

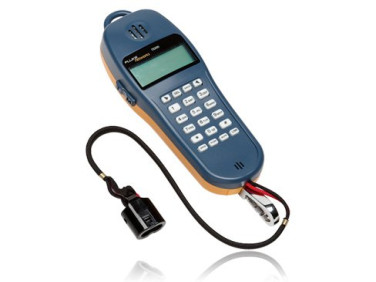

This feature-rich test set is a necessity for a variety of installs. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tone without downing DSL.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteA built-in analog tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The talk battery function provides voltage to carry voice conversation on non-powered pairs.
| Return Loss | >14 dB (ref 600 Ω) | ||
| Off-Hook | 150 Ω nominal | ||
| On-Hook | >1 MΩ | ||
| AC Impedance Off-Hook | 600 Ω nominal; 300 Hz to 3400 Hz | ||
| AC Impedance On-Hook | >120 kΩ; 300 Hz to 3400 Hz | ||
| Pulsing Rate | 10 pps ±1 pps | ||
| Break/Make Ratio | 60/40 | ||
| Interdigit Interval | >300 ms | ||
| Resistance During Break | >100 kΩ | ||
| Tone Frequency Error | ±1.5 % maximum | ||
| Tone Level | –1 dBm combined (typical) | ||
| High versus Low Tone difference | 2 dB ± 2 dB | ||
| Memory Capacity | 10 speed dial memories plus one last number redial memory | ||
| Digit Capacity | 23 digits per memory | ||
| Pause Duration | User programmable Default: 4 seconds | ||
| Hook Flash Duration | User programmable Default: 600 ms | ||
| Automatic Speaker Shut Off Duration | User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes | ||
| Battery | 9 V alkaline or lithium battery | ||
| Measurement | 7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm) | ||
| Weight | 10 ounces (284 g) | ||
| Temperature Range Operating | 32°F to 122 °F (0 °C to 50 °C) | ||
| Storage | -40 °F to 150 °F (-40 °C to 65 °C) | ||
| Altitude | Up to 10,000 ft (3,000 m) | ||
| Relative Humidity | 5 % to 95 % |
Fluke TS® 25D Test Sets Data Sheet
