NG # 00482-HW-Fluke-045

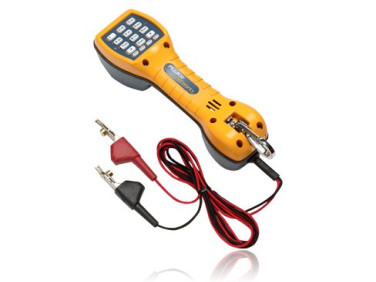

Recognized as the industry standard for basic test sets, the TS30 Test Set provides superior quality at an affordable price. With its high impedance Monitor for DataSafe™ operation, technicians can clip onto a line in Monitor mode without disrupting existing traffic.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteFluke Networks’ unsurpassed RainSafe™ protection standards and DropSafe™ durability assure the test set will keep working even in the toughest environments. Solid weatherproofing provides enhanced resistance to severe weather conditions.
| Return Loss | >14 dB (ref 600 Ω) |
| Line Current Range | 15 mA to 120 mA |
| Resistance to Continuous Current (Talk Mode) | 275 Ω typical at 20 mA |
| Monitor Mode Impedance | >120,000 Ω 300 Hz to 3400 Hz |
| Pulsing Rate | 10 pps pps |
| Open/Close Ratio | 60/40 |
| Inter-digit Interval | 800 ms %, -10% |
| Resistance During Pulse Open | > 200,000 Ω |
| Peak Acoustic Output of the Receiver | <120 dBspl |
| High Group Low Group | -4 dBm (into 600 Ω) -6 dBm (into 600 Ω) |
| High vs Low Tone Difference | 2dB +1db |
| Memory Capacity Memory Retention | 23 digits 8-minutes nominal |
| Flash Duration | 600 ms ±100 ms |
| Ringer Loudness | > 70 dBA at 1 meter |
| Ringer Equivalent (REN) | 0.14 |
| Measurements | 10 in x 2.83 in x 3.34 in (25.5 cm x 7.2 cm x 8.5 cm) |
| Weight | 16.8 ounces (0.476 kg) |
TS® 30 Series Test Sets Data Sheet
