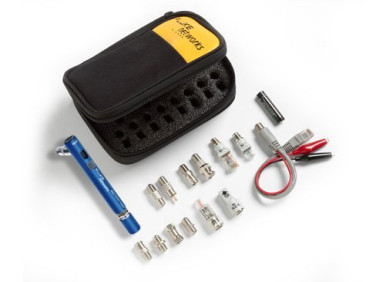

Fluke Networks PTNX8-Cable Pocket Toner NX8 Cable Kit

  • NG # 00481-HW-Fluke-044

The Pocket Toner® connects to any voice, data, or video cable to detect open/short circuits, continuity, AC/DC voltage* and dial tone* all while protecting up to 52 volts

Manufactured By :
fluke
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

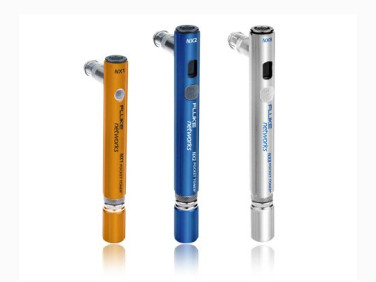

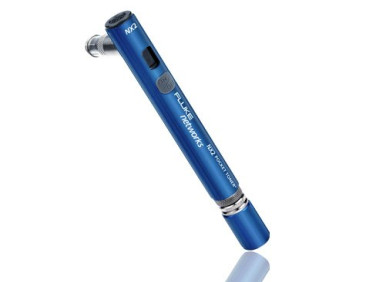

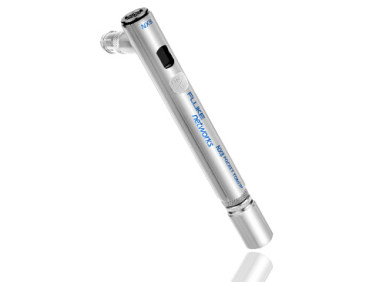

he Pocket Toner comes in three models and several different kit configurations so no matter what your job, you can safely install and test. All of the Pocket Toners have dual audible indicators in the main body and detachable buzzer toner units, removable push on connectors, auto shut-off and easy-to-read indicators. Pocket Toner® NX1 – Identify and test live, singular coax cables for continuity, opens and shorts. Pocket Toner® NX2– All the features of the NX1 plus more—test coaxial cables for continuity, AC and DC voltage, shorts, opens, 50-75 Ω termination, and polarity with Dial Tone Detective™ adapter. Pocket Toner® NX8 – All the features of the NX1 and NX2 plus more—test up to 8 cables at once for continuity, shorts, opens, 50-75 Ω termination, and polarity with Dial Tone Detective™ adapter.

Specification


Approximate distance
RG6: 300 m (1,000 ft)
Output voltage in continuity mode
3.6 Vdc (with a new battery)
Toner frequency
Main unit: 2.7 kHz. Toner cap: 2.3 kHz
Maximum input voltage
60 Vdc
Battery type
1.5 V AAA alkaline
Auto shut-off
10 minutes
Operating temperature
-20 °C to +65 °C
Storage temperature
-30 °C to +70 °C
Altitude
3,000 m (10,000 ft) maximum
Relative humidity
5 % to 95 % (non-condensing)
Dimensions and weight
5.4 in x 0.6 in (138 mm x 15 mm), 2.2 oz (62.4 g)


CATALOGS

Fluke Networks PTNX8-Cable Pocket Toner NX8 Cable Kit Data Sheet
