NG # 00479-HW-Fluke-042

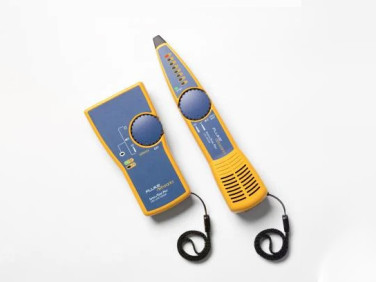

The IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks is the first network cable toner tracer and probeto offer digital and analog signaling all in one network toner and probe. That means it’s equipped with the most powerful cable tracing and location technologies for any work environment.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe IntelliTone™ Pro 200 LAN Toner and Probe Series from Fluke Networks gives you superior vision for tracing and locating cables hidden in floors, ceilings, walls, and in bundles. This network cable toner and probe's breakthrough digital technology makes it the first tool to tone and trace safely and effectively on active networks.
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C) 75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. |

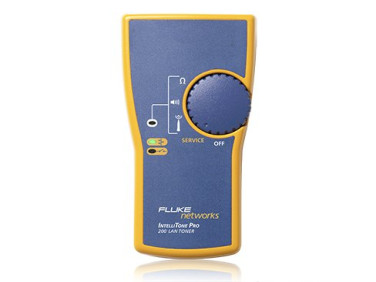

| Toner specifications | |
| Dimensions | 5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm) |
| Display | LED |
| Control | Thumbwheel switch |
| Toner interface | Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring |
| Toner frequency | IntelliTone™ signal: encoded digital signal Analog SmartTone signal: 500 - 1200Hz, 4 songs |
| Ouptut power | 5 V p-p |
| Auto power down | Turns off automatically after 2 1/2 hours of inactivity |
| Probe specifications | |
| Dimensions | 8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio files Analog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map Detects analog SmartTone signal (500-1200Hz) and other analog toners. |
| Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling. |
| Auto power down | Turns off automatically after 1 hour of inactivity |
