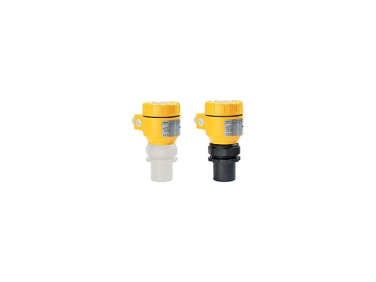

GF Signet 2260 Ultrasonic Level Transmitters

  • NG # 04197-HW-GF-041

The GF Signet 2260 Ultrasonic Level Transmitters is a rugged, high performance ultrasonic level measurement transmitter, having transducer and processing electronics and a display/programming unit incorporated in one single housing. All type 2260 Level Transmitters are using established high end pulse echo transducers, which provide narrow beam angles and reliable measurement ranges up to a distance of 15 meters.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

For small, stand alone tanks the transmitter provides a simple 2-wire 4 to 20 mA output, with additional power relay contacts. It can be programmed using push buttons and the large, graphic display. For large and/or multiple tank applications versions with HART interface are recommended, communicating directly with a panel mount controller or PLC. The HART protocol can easily be used for programming these versions.

Specification

  • 2-wire compact transmitters
  • Non-contact level metering
  • Ranges:
    • 0.2 to 4 m / 0.65 to 13 ft
    • 0.25 to 6 m / 0.82 to 20 ft
    • 0.45 to 15 m / 1.5 to 49 ft
  • Accuracy: ±(0.2 % of measured distance plus 0.05 % of range)
  • Narrow 5° beam angle
  • Level, volume and open channel flow
  • Fully temperature compensated electronics
  • PP or PVDF sensor body
