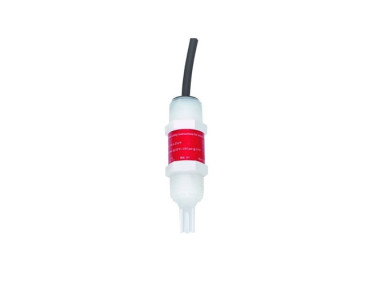

GF Signet 2350 Temperature Sensor

  • NG # 02491-HW-GFS-019

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet 2350 temperature sensor has a one-piece injection molded SYGEF ™ PVDF body that is ideal for use in high purity applications. GF Signet 2350 temperature sensors outlast metal sensors in aggressive liquids, eliminating the need for costly custom thermowells.

GF Signet 2350 temperature sensors are available with S3L (Signet Sensor Serial Link) digital output or field-scaleable 4 to 20mA output. Dual threaded ends (3/4 in. NPT) allow submersion in process vessels or in-line installation with conduit connection. Integral adapters (sold separately) may be used to create a compact assembly with field mount versions of the GF Signet 8350 temperature transmitter.

Applications for the GF Signet 2350 Temperature Sensor

  • Plating bath temperature control
  • Heat exchange monitor
  • R.O. System monitor
  • D.I System monitor
  • Hot / cold mixing system monitor
  • Data acquisition
  • Cooling loops
  • Effluent monitoring
  • HVAC
  • Chemical processing

Specification

  • S3L or 4 to 20mA output
  • One-piece injection molded SYGEF PVDF body
  • PT-1000 platinum RTD in extended tip for quick response
  • Threaded for in-line or submersible installation
  • Temperature Range: 0-100°C
