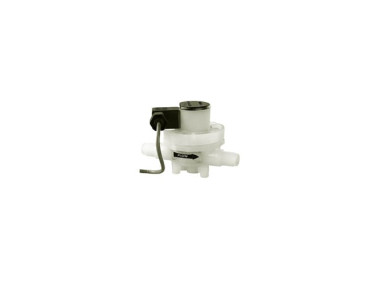

GF Signet 2507 Mini Flow Sensor

  • NG # 0729-HW-GFS-009

Compact flow sensor featuring a freely rotating rotor propelled by fluid flow.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet 2507 Mini Flow Sensor contains a free-running rotor that is driven by the fluid flow. Within the given measurement range, the rotational speed of the rotor is proportional to the fluid flow rate. Permanent magnets built into the rotor trigger an electronic switch in the top of the flow sensor creating a square-wave output frequency proportional to flow rate. Both opaque and transparent fluids can be measured from 0.2 to 20.0 centistokes.

Other technical features of the GF Signet 2507 Mini Flow Sensor include its removable sealed electrical connection, PVDF body and rotor, and fully encapsulated 4-magnet rotor. These flow sensors have Viton® quad-ring seals and inserts for different flow ranges.

Applications for the GF Signet 2507 Mini Flow Sensor
Fluid Dispensing
Laboratory and Clinical Wet Benches
Chemical Dosing
Batch Processing


Specification

Compact assemblySimple installation1/4 in. threaded connectionDetachable signal connectorPVDF constructionFour flow rangesBetween 0.5 to 12 lpm (0.1 to 3.2 gpm)
