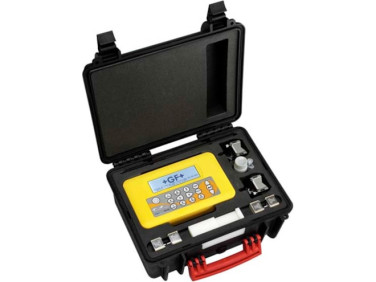

GF Signet Portaflow 220 / 330 Ultrasonic Flow Meter

  • NG # 02493-HW-GFS-021

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet Portaflow 220 / 330 ultrasonic flow meter range provides simplified measurement of liquid flow in industrial environments with clamp-on installation and an easy to use interface. It is designed primarily for temporary or semi-stationary use.

Applications:

  • Potable Water
  • River Water
  • Cooling Water
  • Demineralized Water
  • Water/Glycol Solutions
  • Chemicals
  • Leak Detection
  • Boiler Testing

Specification

  • 9 to 24VDC power supply
  • 0.1 to 20m/s flow velocity range
  • Accuracy:
    • Pipe ID less than 2.95 inches ±0.5% to ±2% of flow reading
    • Pipe ID 0.51 inches to 2.95 inches ±3% of flow reading
    • All pipe ID's ±6% of flow reading
  • <500ms response time depending on pipe diameter
  • Easy to install clamp-on design
  • Rechargeable battery for up to 14 hours of use
  • Optional datalogger function for up to 100 million data points
  • Analog and pulse outputs
  • Backlit display
  • Push button interface
  • Suitable for multiple pipe materials including CPVC, PVDF, Steel, Copper, and more

  • What's in the Box

    • Transducer set and 2m cables
    • Ruled guide rail
    • Guide rails
    • 2x mounting chains
    • Output signal cable
    • Power supply
    • Tape measure
    • PVDF test block
    • Coupling grease
