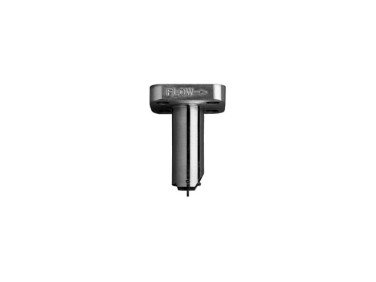

GF Signet 525 Metalex Paddle Wheel Flow Sensor

  • NG # 0726-HW-GFS-006

  • MF # P525-2

Merges insertion paddlewheel technology with robust stainless steel construction.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet 525 Metalex ™ paddle wheel flow sensor combines stainless steel construction with insertion paddle wheel technology. The result is a highly reliable sensor suitable for operation at extreme pressures and temperatures. The GF Signet 525 Metalex ™ paddle wheel flow sensor features a Tungsten Carbide shaft and a Fluoroloy B ® / PTFE bearing, which provide excellent wear resistance for extended service.

The GF Signet 525 Metalex ™ paddle wheel flow sensor's comprehensive fitting program allows installation in steel lines with the mini-block for small diameters and either the mini-tap or saddle for pipes up to DN300 (12 in). The GF Signet 525 Metalex ™ paddle wheel flow sensor has a self-generating output signal allows use with any battery operated flow totalizer, including the GF Signet 8150 flow totalizer.

Applications of GF Signet 525 Metalex ™ Paddle Wheel Flow Sensor
Boiler Feedwater Monitoring
HVAC Systems
Chemical Transport
Heat Exchangers
Reverse Osmosis
Cooling systems
Not Suitable for Gases

Specification

  • Flow rate range 0.5 to 6 m/s (1.6 to 20 ft/s)
  • For up to 103 bar (1500 psi) pressure
  • For up to 149°C (300°F) temperatures
  • DN15 to DN300 (0.5 to 12 in) pipe range
  • 316SS body (1.4401)
  • Tungsten Carbide or SS shaft
  • 7.6 m (25 ft) cable included
  • CE approved
