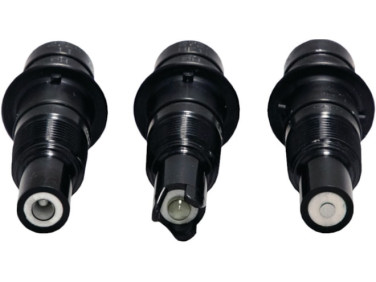

GF Signet 2724-2726 pH and ORP Electrodes

  • NG # 02485-HW-GFS-012

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Signet 2724 - 2726 pH and ORP electrodes feature a patented reference electrode design and uses the unique foul-proof patented DryLoc connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc connector with foul-proof gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750/1 sensor electronics. The robust Ryton threaded sensor body and choice of flat pH, bulb pH or flat ORP sensing elements provides a broad range of chemical compatibility for a wide variety of applications.

There are two optional sensing versions, HF and LC available. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass in levels of pH 6 and below. The LC version can be used for low conductivity fluids (not less than 20 µS/cm).

The quick temperature response is available in either a PT-1000 or 3KΩ temperature sensor and allows compatibility with all GF Signet pH/ORP instruments. The 2724-2726 electrodes are general purpose sensors ideal for a wide range of applications. The sensors incorporate ¾" NPT or ISO 7/1 R¾ threads for installing into standard pipe-tees. They can also be mounted directly into GF Signet standard fittings.

Applications for the GF Signet 2724-2726 pH and ORP Electrodes
Water & wastewater treatment
Neutralization systems
Effluent monitoring
Sanitization systems
Pool & spa control
Aquatic animal life support systems
Process control
Cooling towers

Specification

  • 14 to 185°F (-10 to 85°C) operating temp
  • 97% efficiency at 77°F (25°C)
  • 0 to 14 pH
  • ±2000 mV ORP
  • Inline or submersible mounting
  • Ryton body
  • Dryloc connector
