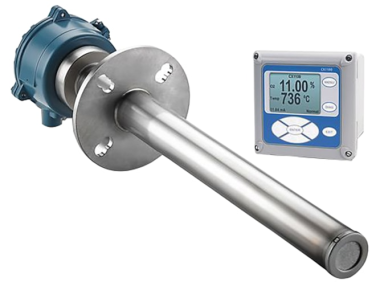

Rosemount CX1100 In-Situ Oxygen Analyzer

  • NG # 04216-HW-EMR-052

The Rosemount CX1100 In Situ Oxygen Transmitter provides a continuous, accurate measurement of the oxygen remaining in flue gases coming from a combustion process. Accurate measurements of furnace exhaust excess oxygen are critical for combustion optimization and can reduce energy costs while increasing safety and lowering emissions.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Rosemount CX1100 probe contains a zirconia type oxygen sensor. At high temperatures, zirconia produces an electrical potential that is proportional to the difference in process oxygen concentration and ambient reference air. This voltage is transmitted to the Rosemount CX1100 remote transmitter and output as an analog signal. The sensor is mounted at the end of the probe tube which extends into a flue gas duct or stack. Varying lengths of the probe are available to achieve desired insertion depths. The probe tube also houses a heating element to precisely control the temperature of the sensor, reducing errors induced by varying process temperatures.

Specification

  • Up to 752°F (400°C) process temperature range
  • 0 to 23% measurement range
  • ±1% of reading repeatability
  • -4 to 158°F (-20 to 70°C) ambient temperature
  • 19.7 in (0.5 m) to 6.6 ft (2 m) optional probe lengths
  • 4-20 mA output signal
  • IP66
