GF Signet 2552 Magmeter

  • NG # 04199-HW-GF-043

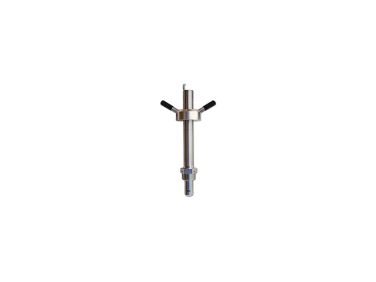

The GF Signet 2552 magmeter flow sensor is a heavy duty, high performance electromagnetic flow sensor in an adjustable-insertion configuration. The GF Signet 2552 magmeter can be used with a ball valve for hot-tap installations. This insertion-style electromagnetic flow sensor has no moving parts and is constructed of corrosion-resistant materials to provide long-term reliability with minimal maintenance costs.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The GF Signet 2552 magmeter flow sensor is versatile and simple-to-install, delivering reliable flow measurement over a wide dynamic range in pipe sizes ranging from DN50 to DN2550 (2 to 102 inches). GF Signet 2552 magmeters and electromagnetic flow sensors offer a variety of output options compatible with GF Signet flow instruments that feature a frequency or digital (S3L) input. The blind transmitter (4 to 20 mA output) or digital sensor interface is available for long distance signal transmission.

Specification

  • Easy to remove and re-install during maintenance
  • Hot-tap version for installation and service without system shutdown
  • Diagnostic features using colored LED lights
  • Three output choices: frequency, digital (S3L), or 4 to 20 mA
  • Bi-directional flow and empty pipe detection
  • Adjustable insertion depth for large pipe sizes up to DN2550 (102 inches)
  • Flow rate range 0.05 to 10 m/s (0.15 to 33 ft/s)
  • Measurement in dirty and high solids content liquids
