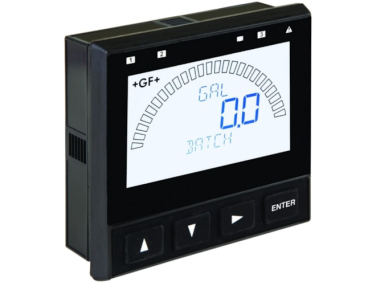

GF Signet 9900-1BC Batch Controller

  • NG # 04204-HW-GF-048

The GF Signet 9900-1BC Batch Controller system provides control capability and process fine tuning in a familiar package. The programming interface uses a four-button keypad and an intuitive menu for adjusting a batching system to the best performance possible. Choose between simple or advanced modes. In simple mode, relay outputs can be used for batching, external counter, missing signal alarm and 4 to 20 mA output can be used to indicate batch status. In advanced mode relays can also be used for end of batch pulse, two-stage shutdown, overrun alarm, high flow detection, total volume or source volume alarm.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed for a variety of batch applications, the 9900-1BC can save up to 10 batch sizes for batching or blending a variety of liquid volumes. Customize batch names for easy distinction between batches. One K-Factor can be used for all batches, or use a different K-Factor for each batch for when different liquids are batched. User can choose to be prompted prior to starting a batch with a Yes/No or with a password to prevent inadvertently starting a batch.

The 9900-1BC operates on 10.8 to 35.2 VDC, regulated. Connect a remote start or stop switch for remote batch control. Use the end-of-batch pulse to trigger the next step in the process.

Specification

  • ±0.2% accuracy
  • One input channel
  • Terminal blocks:
    • Pluggable screw type
    • 14 AWG max wire gauge
  • Store up to 10 batch sizes
  • Customize up to 10 batch sizes
  • Remote control wiring with start/stop/resume terminals
  • 3 programmable relays
  • Two-stage control to prevent overfilling
  • Confirmation START/RESUME
  • Enter 10 different K-Factors
