NG # 02630-HW-KELLER-006

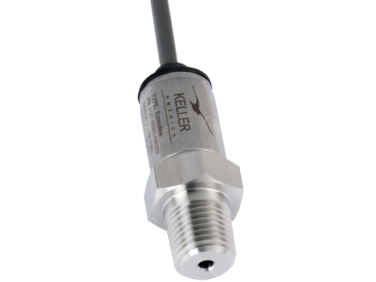

The Keller Econoline is an entry-level, general-purpose pressure transmitter designed for cost-effective, reliable fluid pressure measurement. Built around a piezoresistive silicon sensor isolated by an oil-filled 316L stainless steel diaphragm, it provides a standard analog signal proportional to the applied line or vessel pressure.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A Quote| Parameter | Standard Value / Range |
| Pressure Types | Vented Gauge (Relative), Sealed Gauge, Absolute |
| Full-Scale Ranges (FS) | $0\text{--}15\text{ PSI}$ up to $0\text{--}10,000\text{ PSI}$ |
| Static Accuracy (25°C) | $\pm 1.0\%\text{ FS}$ (Standard) / $\pm 0.5\%\text{ FS}$ (Optional) |
| Thermal Error Band (TEB) | $\pm 0.1\%\text{ FS / }^\circ\text{C}$ maximum (over compensated range) |
| Proof Pressure (Overpressure) | $3\times\text{ FS}$ (for 15 PSI) down to $1.1\times\text{ FS}$ (for 10,000 PSI) |
| Burst Pressure | Up to $5\times\text{ FS}$ (range dependent) |
| Operating Temperature | $-20^\circ\text{C to } +80^\circ\text{C}$ ($-4^\circ\text{F to } +176^\circ\text{F}$) |
| Compensated Temp Range | $0^\circ\text{C to } +50^\circ\text{C}$ ($32^\circ\text{F to } +122^\circ\text{F}$) |
| Supply Voltage | $8\text{--}28\text{ VDC}$ (2-wire/3-wire) or $5\text{ VDC}$ (ratiometric) |
| Analog Output Signals | $4\text{--}20\text{ mA}$ (2-wire), $0\text{--}5\text{ VDC}$, $0\text{--}10\text{ VDC}$, $0.5\text{--}4.5\text{ VDC}$ |
| Wetted Materials | 316L Stainless Steel, Fluorocarbon (Viton) or EPDM O-rings |
| Housing Material | 316L Stainless Steel |
| Process Connection | $1/4\text{'' NPT Male}$ |

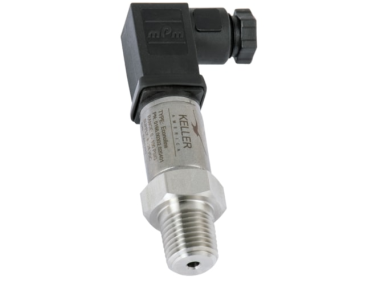

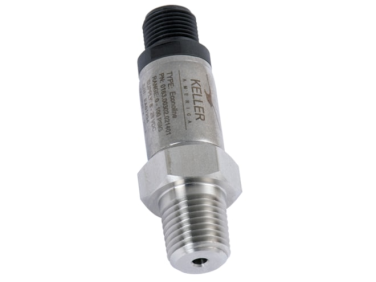

| Electrical Connections | Integral PVC cable, Mini-DIN (mPm393 / Hirschmann), M12 |
| Environmental Protection | IP65 / NEMA 4 |
| Shock & Vibration | Shock: $20\text{g}$ ($11\text{ ms}$); Vibration: $20\text{g}$ ($5\text{--}2000\text{ Hz}$) per IEC 68-2-6 |
