NG # 04012-HW-KELLER-034
MF # KEL-10L-s

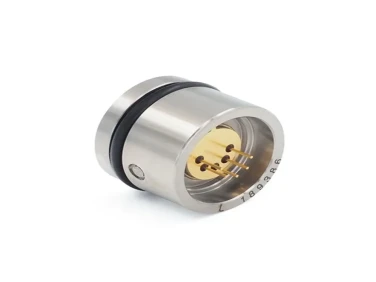

The KELLER Series 10L is an unamplified, piezoresistive OEM pressure transducer featuring a standard $\varnothing 19\text{ mm}$ body diameter. Positioned as the most widely used industrial size in KELLER’s capsule lineup, its larger diaphragm area delivers high sensitivity, exceptional linearity, and lower thermal error coefficients compared to smaller sub-miniature models.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

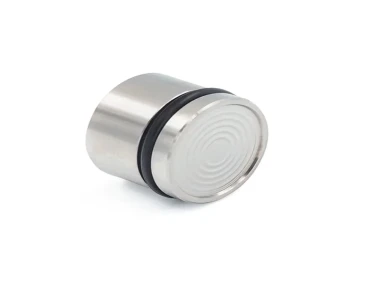

Get A QuoteThe pressure transducers of the 10L series have a robust housing of stainless steel, giving them optimum long-term stability for a range of OEM applications. The metal diaphragm is welded on front-flush and gap-free, separating off the piezoresistive pressure sensor made of silicon from the measuring medium. Every pressure transducer is measured over the entire pressure and temperature profile and is supplied with a detailed calibration sheet.
| Parameter | Specification |
| Pressure Ranges | $0\text{--}0.1\text{ bar}$ up to $0\text{--}1,000\text{ bar}$ |
| Pressure Reference | Vented Gauge (PR), Absolute (PAA), Sealed Gauge (PA) |
| Linearity / Accuracy | $\pm 0.1\%\ \text{FS}$ typical (BFSL) / $\pm 0.25\%\ \text{FS}$ max |
| Long-Term Stability | $\le \pm 0.1\%\ \text{FS / year}$ under reference conditions |
| Excitation / Supply | $1.0\text{ mA}$ nominal constant current ($3.0\text{ mA}$ max) or $10\text{ VDC}$ constant voltage |
| Uncompensated Output | $\sim 100\text{--}200\text{ mV}$ full-span output (range dependent) |
| Bridge Resistance | $3.5\text{ k}\Omega \pm 20\%$ at $20^\circ\text{C}$ |
| Operating Temp. Range | $-40^\circ\text{C}$ to $+125^\circ\text{C}$ |
| Compensated Temp. Range | $-10^\circ\text{C}$ to $+80^\circ\text{C}$ (Custom ranges available on request) |
| Dimensions & Weight | $\varnothing 19.0\text{ mm} \times 5.0\text{--}10.0\text{ mm}$ (depending on range) | Weight: $$\approx 10\text{ g$ |
| Wetted Materials | Stainless Steel AISI 316L (1.4435) / Hastelloy C-276 / Titanium |
| Electrical Interface | Glass-feedthrough header pins ($\varnothing 0.45\text{ mm}$) or color-coded silicone wire leads |
