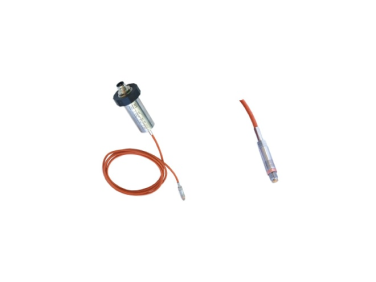

The Keller Series M5 HB is the high-bandwidth, amplified version of the miniature M5 pressure transducer. It builds upon the ultra-compact M5 sensor head by pairing it with an inline signal-conditioning electronics unit located along the high-temperature cable.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Keller Series M5 HB Pressure Transmitter was designed to take advantage of the high dynamic range of the M5 sensor head. The signal path remains entirely analog, although it is readjusted in real time by means of a high-precision digital compensation circuit. This ensures the full dynamic range of the sensor and the accuracy of the measurement signal are maintained across the entire 0 to 50 kHz bandwidth. With a temperature range of -40 to 257°F (-40 to 125°C), the remote signal converter satisfies the exceptional demands associated with hostile environments.
This design delivers a high-level analog output (such as $0\dots 10\text{ V}$ or $0\dots 5\text{ V}$) with an exceptionally wide dynamic frequency response of up to 50 kHz, protecting high-speed measurements from signal noise over longer cable runs.
| Parameter | Specification Details |
| Pressure Ranges | $0\dots 3\text{ bar}$, $0\dots 10\text{ bar}$, $0\dots 30\text{ bar}$ (Absolute) |
| Overpressure Limit | Up to $5\times$ measuring range |
| Dynamic Bandwidth | $0\text{ Hz}$ to $50\text{ kHz}$ (static to ultra-fast dynamic transients) |
| Total Error Band | $\pm 0.5\,\%\text{FS}$ typical (including non-linearity, hysteresis, and thermal effects) |
| Analog Output Signals | $0\dots 10\text{ V DC}$, $0\dots 5\text{ V DC}$, or $0.5\dots 4.5\text{ V DC}$ |
| Sensor Head Temperature | $-50\text{ °C}$ to $+180\text{ °C}$ (up to $+200\text{ °C}$ short-term peak) |
| Inline Electronics Temp. | $-40\text{ °C}$ to $+125\text{ °C}$ |
| Power Supply | $12\dots 32\text{ V DC}$ (for $0\dots 10\text{ V}$ output) |
| Thread & Sensor Head | M5 $\times$ 0.5 fine thread ($\varnothing 6.2\text{ mm} \times 40\text{ mm}$ length) with flush seal |
| Sensor Head Materials | Stainless steel 316L / Silicon sensing cell; FEP Teflon-insulated cable |
