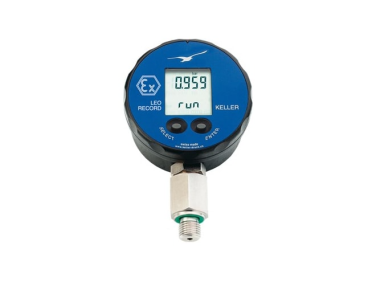

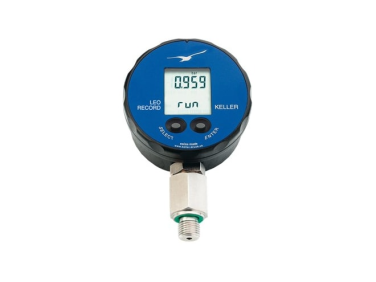

Keller LEO Record Digital Manometer

  • NG # 02632-HW-KELLER-008

The Keller LEO Record (and its intrinsically safe version, LEO Record Ei) is an autonomous, battery-powered digital manometer featuring an integrated electronic data logger. Designed for long-term field monitoring, it records both medium pressure and temperature over extended periods without requiring external power or wiring.

Manufactured By :
Keller Druck
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Unlike standard digital gauges that only show live values, the LEO Record serves as a standalone data acquisition instrument. It uses piezoresistive sensor technology paired with a high-capacity internal memory that can store up to 57,000 detailed measurement records (including pressure, temperature, and timestamp).

Specification

Specification CategoryParameterSpecification Detail
Measurement & PerformancePressure Ranges$-1\text{ to }3\text{ bar}$ up to $0\text{ to }1000\text{ bar}$
Total Error Band (TEB)$\pm 0.1\%\text{ FS}$ standard ($0\text{--}50^\circ\text{C}$ range); $\pm 0.05\%\text{ FS}$ optional
Temperature AccuracyTypically $\pm 1^\circ\text{C}$
Memory Capacity57,000 measurement points (Pressure + Temperature)
Electrical & ConnectivityPower Supply3.6V Lithium Battery (SL-760 / AA size)
Battery LifeUp to 2 years (based on 1-hour recording intervals)
Digital InterfaceRS485 (via interface cable to USB or RS232)
Physical & EnvironmentalWetted MaterialsStainless Steel (316L / 1.4435), Viton seal
Protection RatingIP65
Process Connection$7/16\text{''-20 UNF}$ Male with $1/4\text{''}$ NPT or $1/4\text{''}$ BSP adapters
Special VariantsLEO Record EiIntrinsically safe (Ex ia IIC T4
