NG # 04017-HW-KELLER-039

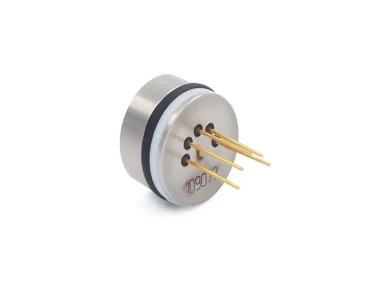

The KELLER Series 6LHP is an ultra-compact, unamplified piezoresistive OEM high-pressure transducer capsule. Designed for integration into systems with limited space, it measures just $\varnothing 13\text{ mm} \times 8\text{ mm}$ while supporting operational pressure ranges up to 2,000 bar.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing

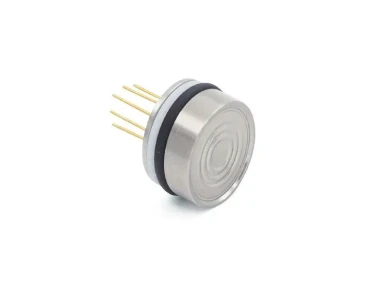

Get A QuoteHoused in a rugged stainless steel housing, the 6LHP series high-pressure sensors ensure maximum long-term stability for a variety of OEM applications. The flush, fully welded metal diaphragm separates the silicon piezoresistive pressure sensor from the measuring fluid. Each pressure sensor is calibrated by measuring pressure and temperature and then delivered with a detailed calibration sheet.
| Parameter | Specification |
| Pressure Ranges | $0\text{--}100\text{ bar}$ up to $0\text{--}2,000\text{ bar}$ |
| Pressure Reference | Sealed Gauge / Absolute (PA, PAA) |
| Accuracy / Linearity | $\pm 0.25\%\ \text{FS}$ (typical) / $\pm 0.5\%\ \text{FS}$ (max) |
| Long-Term Stability | $\le \pm 0.25\%\ \text{FS / year}$ |
| Excitation / Supply | $1\text{ mA}$ nominal constant current ($3\text{ mA}$ max) |
| Signal Output Span | $\sim 160\text{ mV/mA}$ (varies by pressure range) |
| Operating Temp. Range | $-40^\circ\text{C}$ to $+150^\circ\text{C}$ |
| Compensated Temp. Range | $-10^\circ\text{C}$ to $+80^\circ\text{C}$ |
| Dimensions | $\varnothing 13.0\text{ mm} \times 8.0\text{ mm}$ |
| Electrical Connection | $\varnothing 0.45\text{ mm}$ gold-plated pins or optional AWG28 silicone leads |
