NG # 02626-HW-KELLER-002

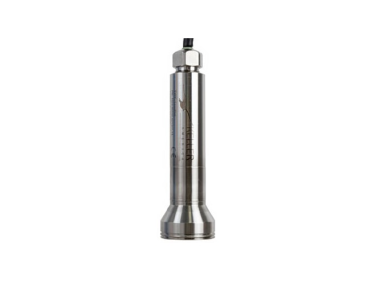

The Keller LevelRat is a rugged, non-clogging submersible level transmitter specifically engineered for wastewater, sewage, leachate, and slurry applications. Unlike general-purpose transmitters that utilize standard recessed ports or thin diaphragm caps susceptible to clogging from suspended solids and bio-fouling, the LevelRat features a wide, flush 316L stainless steel diaphragm protected by a removable high-viscosity nose cap.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A Quote| Parameter | Specification |
| Pressure Ranges | $0\text{--}7\text{ ft WC}$ up to $0\text{--}300\text{ ft WC}$ ($0\text{--}3\text{ PSI}$ to $0\text{--}130\text{ PSI}$) |
| Static Accuracy (25°C) | $\pm 0.1\%\text{ FS}$ |
| Total Error Band (TEB) | $\pm 0.25\%\text{ FS}$ over $0^\circ\text{C to } +50^\circ\text{C}$ ($32^\circ\text{F to } +122^\circ\text{F}$) |
| Proof Pressure | $2\times\text{ Full Scale}$ |
| Operating Temperature | $-10^\circ\text{C to } +60^\circ\text{C}$ ($14^\circ\text{F to } +140^\circ\text{F}$) |
| Compensated Range | $-10^\circ\text{C to } +80^\circ\text{C}$ ($14^\circ\text{F to } +176^\circ\text{F}$) |
| Analog Output Options | $4\text{--}20\text{ mA}$ (2-wire current loop), $0\text{--}5\text{ VDC}$, $0\text{--}10\text{ VDC}$ |
| Digital Output | RS-485 (MODBUS RTU / Keller-bus) |
| Supply Voltage | $11\text{--}32\text{ VDC}$ (with internal surge protection) |
| Body Material | 316L Stainless Steel (Standard) or Titanium (Optional) |
| Diaphragm Material | 316L Stainless Steel (Flush configuration) |
| Cable Jacket | Hytrel® (chemical/oil resistant) with integral vent tube and Kevlar strain relief |
| Outer Diameter | $0.825\text{''}$ ($21\text{ mm}$) |
| Environmental Protection | IP68 / NEMA 6P (Fully Submersible) |
| Hazardous Approvals | UL/cUL Class I, Div 1, Groups A, B, C, D (Intrinsically Safe) |
