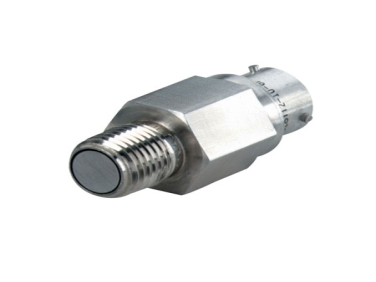

Miniature, Flush Diaphragm Pressure Transducers PX61C1-200SV

  • NG # 03886-HW-Omega-057

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a rugged, high-accuracy sealed gauge pressure transducer designed for demanding industrial and aerospace applications. It features a stainless steel wetted construction for superior corrosion resistance and durability, making it suitable for a wide range of media and harsh operating environments.

Specification

Accuracy± 1 %
Accuracy Class> 0.25%
Accuracy Detail1.0% linearity and hysteresis combined; calibrated at 0%, 50%, 100%, 50%, 0%
Additional Features 1None
Bridge Resistance350 Ω
Burst Pressure5x Full Scale
Burst Pressure Note500% of capacity
Compensated Temperature, Max71 °C
Compensated Temperature, Min16 °C
Electrical ConnectionMIL-26482-I 10-6P
Electrical Output2 mV/V
Electrical Output NoteRange @ 50 psi = 1 mV/V; range >100 psi: 2 mV/V
Materials, Wetted17-4 Stainless Steel
Mating ConnectorMIL-26482-I 10-6S
Measurement Pressure TypeSealed Gauge
Measurement Pressure, Max200 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max121 °C
Operating Temperature, Min-54 °C
Output SignalMillivolt
Process Connection Size1/4 in
Process Connection TypeNPT Male
Proof Pressure150% Full Scale
Proof Pressure Note150% of capacity
Repeatability Error0.1% of FSO
Supply Voltage5 Vdc
Thermal Effect on Span error, Max± 0.02% FSO/°F
Thermal Effect on Zero error, Max± 0.02% FSO/°F , ± 0.01% FSO/°F
Weight50 g
Zero/Balance Error± 1% FS
