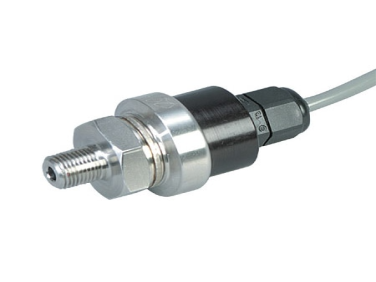

PX480A OEM Style, Compact, Vacuum and Absolute Pressure Transducers

  • NG # 03875-HW-Omega-046

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This compact, robust gauge pressure sensor provides highly accurate voltage output, excellent long-term stability, and is designed for harsh environments with wide temperature, shock, and vibration tolerance. Ideal for industrial or laboratory pressure monitoring applications.

Specification

Accuracy± 0.3 %
Accuracy Class> 0.25%
Accuracy Detail0.3% BFSL max (includes linearity, hysteresis and repeatability)
Burst Pressure3x Full Scale
Burst Pressure Note3X FS
Cable Length0.4 m
Compensated Temperature, Max75 °C
Compensated Temperature, Min-25 °C
Diameter29.7 mm
Electrical ConnectionCable
Electrical Output1 to 5 V
Electrical Output Note0 to 50 mV for 0 to 1 psi models, 0 to 100 mV for all other ranges; bridge output
Height72 mm
Materials, Wetted316L Stainless Steel
Measurement Pressure TypeGauge
Measurement Pressure, Max100 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max80 °C
Operating Temperature, Min-40 °C
Output Resistance50000 Ω
Output SignalVoltage
Process Connection Size1/8 in
Process Connection TypeNPT Male
Process Temperature, Max100 °C
Process Temperature, Min-40 °C
Proof Pressure2x Full Scale
Proof Pressure Note2X FS
Shock30 g
Stability<0.25%
Stability Note1-Year Stability: <0.25% FS
Supply Voltage10 Vdc
Thermal Effect on Span error, Max2% FS maximum over compensated temperature range
Thermal Effect on Zero error, Max2% FS maximum over compensated temperature range, 2% FS maximum over compensated temperature range
Vibration10 g, 55 to 2000 Hz
Weight142 g
