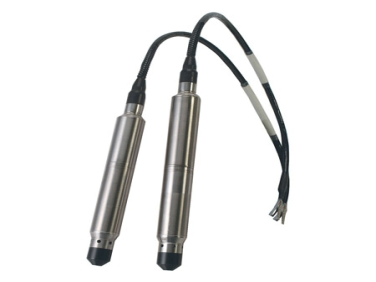

Submersible Pressure Transducers with 4 Output Options PX709GW-015GI

  • NG # 03877-HW-Omega-048

Manufactured By :
omega
Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-accuracy gauge pressure sensor designed for industrial applications such as building and maintenance, fluid measurement and control, and waste management. It provides precise pressure measurement from 0 to 15 psi with an accuracy of ±0.2% and excellent long-term stability (±0.1% FS per year).

Specification

Accuracy± 0.2 %
Accuracy Class0.1% to 0.25%
Accuracy Detail(Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi)
Additional Features 1Ground Measurements
Additional Features 2None
ApplicationsBuilding and Maintenance, Fluid Measurement and Control, Waste Management
BandwidthDC to 1 kHz
Burst Pressure4x Full Scale
Cable MaterialETFE
Cable SealingFused to case via molded Neoprene boot rated to 610 m (2000') depth
ComplianceRoHS
Electrical Connection NoteIntegral lightning surge protection to IEC-61000-4-5 (Level 4)
Electrical Output4 to 20 mA
Electrical Output NoteNone
Insulation Resistance100 MΩ
Materials, Wetted316 Stainless Steel
Measurement Pressure TypeGauge
Measurement Pressure, Max15 psi
Measurement Pressure, Min0 psi
Output SignalCurrent
Pressure Cycles1 million
Process Connection Size9/16 in
Process Connection TypeUNF Female
Proof PressureUp to 3000 psi
Response Time500 µs
Response Time Note500 usec, 0 to 90% step change
Shock50 g, 11 ms, half-sine horizontal and vertical axis
Stability± 0.1%
Stability NoteLong Term Stability (1 year.): ± 0.1% full scale typical
Supply Power Note10 to 30 Vdc [(10 to 20 Vdc above 105°C (229°F)] maximum loop res Ω = (Vs-10) x 50
Supply Voltage10 to 30 Vdc
Thermal Effect on Span error, Max± 0.3% span
Thermal Effect on Zero error, Max± 0.3% span , ± 0.3% span
Vibration± 20 g
Weight285 g
