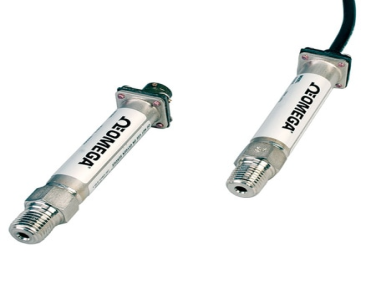

PX605-500GI TRANSMITTER,CABLE STYLE

NG # 03873-HW-Omega-044

Manufactured By :

omega

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The PX605-500GI is a rugged, high-performance thin-film pressure transducer designed for industrial applications requiring adjustable zero and span calibration.

Specification

Accuracy	± 0.4 %
Accuracy Class	> 0.25%
Accuracy Detail	± 0.4% BFSL
Additional Features 1	None
Burst Pressure	8x Full Scale
Burst Pressure Note	800% FS
Cable Length	0.9 m
Compensated Temperature, Max	82 °C
Compensated Temperature, Min	-29 °C
Current Draw	<3.0 mA
Electrical Connection	Cable
Electrical Output	4 to 20 mA
Electrical Output Note	None
Enclosure Material	17-4 PH Stainless Steel
Gauge Type	Thin-film polysilicone Piezoresistive
Hysteresis	± 0.2%
Insulation Resistance	100 MΩ
Mating Connector	MIL-26482-I 8-4S
Measurement Pressure Type	Gauge
Measurement Pressure, Max	500 psi
Measurement Pressure, Min	0 psi
Operating Temperature, Max	90 °C
Operating Temperature, Min	-48 °C
Output Signal	Current
Pressure Cycles	100 million
Process Connection Size	1/4 in
Process Connection Type	NPT Male
Proof Pressure	2x Full Scale
Proof Pressure Note	200% FS
Repeatability Error	± 0.05% full scale
Response Time	5 ms
Stability	± 1.0%
Supply Power Note	10 to 36 Vdc unregulated
Supply Voltage	10 to 36 Vdc
Thermal Effect on Span error, Max	± 0.07% FS/°C
Thermal Effect on Zero error, Max	± 0.07% FS/°C , ± 0.07% FS/°C
Weight	128 g
