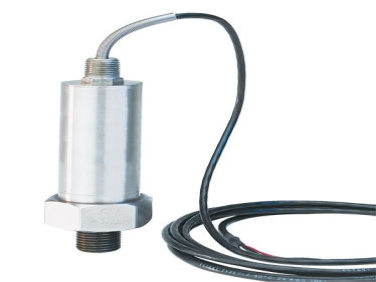

High Temperature, High Pressure Transducers PX91N0-5KSI

  • NG # 03887-HW-Omega-058

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-accuracy, sealed gauge pressure transmitter engineered for demanding industrial applications. It provides a 4–20 mA current output with adjustable range (±10%) and operates reliably across wide temperature and pressure conditions. Designed with a robust 17-4 stainless steel wetted material and a 1/2 in high-pressure NPSM connection, it ensures durability and secure installation.

Specification

Accuracy Class> 0.25%
Burst Pressure150% Full Scale
Burst Pressure Note150% of rated pressure
Cable Length3 m
Compensated Temperature, Max71 °C
Compensated Temperature, Min17 °C
Electrical ConnectionCable
Electrical Output4 to 20 mA
Electrical Output Note4 to 20 mA ± 10% adj
Hysteresis± 0.10% FSO
Linearity Error± 0.35%
Materials, Wetted17-4 Stainless Steel
Measurement Pressure TypeSealed Gauge
Measurement Pressure, Max5000 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max121 °C
Operating Temperature, Min-46 °C
Output SignalCurrent
Process Connection Note1/2-14 NPSM (fits 0.315" dia. 59° ferrule)
Process Connection Size1/2 in
Process Connection TypeHigh Pressure NPSM
Proof Pressure120% Full Scale
Proof Pressure Note120% of rated pressure
Repeatability Error± 0.1% full scale
Supply Voltage12 to 40 Vdc
Thermal Effect on Span error, Max0.005% rdg/°F
Thermal Effect on Zero error, Max0.005% rdg/°F, 0.005% FSO/°F
Zero/Balance Error4 mA (+10%, -2% adj)
