Omega Digital Force Gauge

  • NG # 01867-HW-Omega-003

  • MF # 01867-HW-Omega-003

  • SKU # 01867-HW-Omega-003

Digital Force Gauge

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

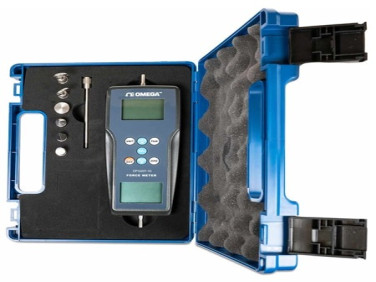

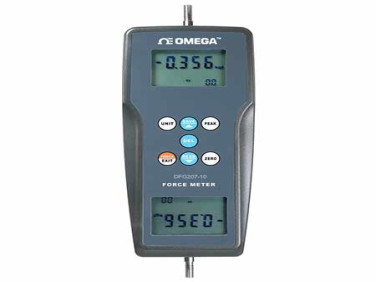

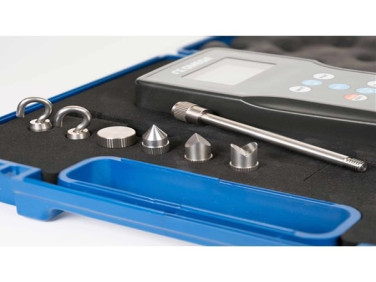

The DFG207 series is a multifunctional, user-friendly, digital force gauge used for tension and compression force testing. The measurement data can be stored within the gauge. The device contains two reversible 4 digit LCD displays, a blue backlight feature, high resolution, and high sampling speed. The DFG207 is an efficient and accurate instrument for push force and pull force testing. The DFG207 series can be used for many different applications, such as electronics, building hardware, textile, and auto parts, and is small in size, light in weight, and easy to carry with the included carrying case. This digital force gauge is offered in a variety of options – each with a different force range.

Specification


Accuracy
± 0.2%FS ± 1Digit
Display
2 Reversed 4 Digit Lcd
Operating Humidity
<80%
Power Off
10 Minutes Auto Power Off, Manual Power Off
Safe Load
150 %FS (Buzzer Alarm Over 110 %FS)
Surrounding
No Vibration Source or Corrosive Medium Around
Backlight
Blue Backlight
Measurement Units
kgf, gf, N, Lbf
Operating Temperature
0-40°C
Power
2x1.5 AA(UM-3) Battery or 6V DC Power Supply
Size
211x80x36mm (8.3x3.15x1.42 in)
Weight
390g
