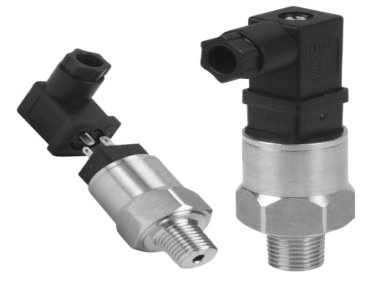

PX119 OEM Style, Compact Pressure Transmitters

  • NG # 03872-HW-Omega-043

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This device is a high-accuracy sensor with ±0.5% BFSL precision, designed for reliable operation across a wide temperature range. It features a 304 stainless steel enclosure with an IP65 rating for dust and water protection, making it suitable for industrial environments. Wetted materials include 304 stainless steel, alumina, and Buna-N (NBR) for durability and chemical resistance.

The sensor supports operating temperatures from -40°C to 135°C and has a response time of 1 ms with excellent stability (<0.3% FS). Electrical protection includes overvoltage, short circuit, and reverse polarity safeguards. It operates on a supply voltage range of 8 to 30 VDC and weighs 70 g. The process connection is NPT male, and the output wiring uses a simple 2-pin configuration (Pin 1: Supply +, Pin 2: Supply –).

Specification

SpecificationValue
Accuracy±0.5%
Accuracy Detail0.50% BFSL Accuracy
Compensated Temperature (Max)85 °C
Compensated Temperature (Min)0 °C
Enclosure Material304 Stainless Steel
Enclosure RatingsIP65
Materials, Wetted304 Stainless Steel, Alumina, Buna-N (NBR)
Operating Temperature (Max)135 °C
Operating Temperature (Min)-40 °C
Output Wiring (Pin 1)Supply +
Output Wiring (Pin 2)Supply -
Process Connection TypeNPT Male
ProtectionOvervoltage, short circuit, reverse polarity
Response Time1 ms
Stability<0.3% FS
Supply Voltage8 to 30 Vdc
Weight70 g
