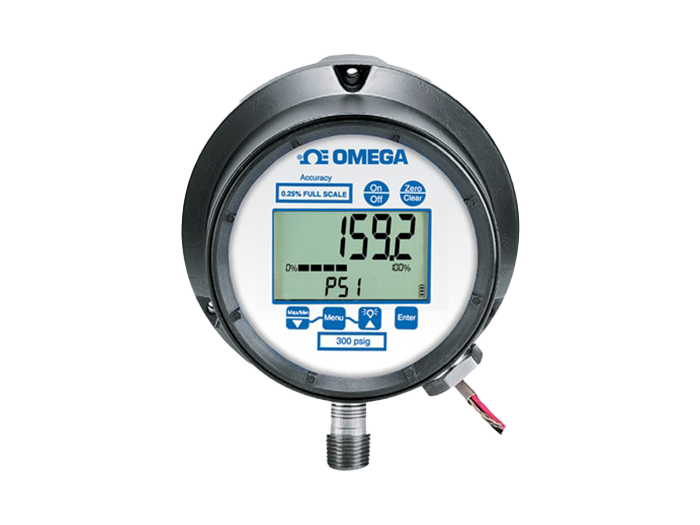

Omega Digital Pressure Gauge with Optional Output and Alarms

  • NG # 02523-HW-Omega-014

  • MF # DPG1000B-100G

  • SKU # DPG1000B-100G

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DPG1000 series is a versatile family of industrial pressure/vacuum gauges. All DPG1000 models feature a large (½"/13 mm H) 3½ digit display in a rugged, splashproof extruded aluminum case. A 1/4 -18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel. The DPG1000 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure/vacuum ranges with both gauge and absolute references are available. The DPG1000 series also features ±0.25% accuracy, 2X overpressure and 4X burst specifications.

AVAILABLE MODELS INCLUDE THE FOLLOWING:
   DPG1000B - Battery powered
   DPG1000L - Loop powered with 4-20 mA output
   DPG1000AD - ac/dc powered
   DPG1000ADA - ac/dc powered with dual alarms
   DPG1000DAR - dc powered with dual alarms and analog output

The DPG1000 is also available with a NEMA 4X rated enclosure. Please see the DPG1100">DPG1100 for complete details, or contact our Pressure department for more information.

The DPG1000 is also available with ±0.10% Accuracy. Please see the DPG1001">DPG1001 for complete details, or contact our Pressure department for more information.

Specification

Burst Pressure 4x rated pressure min
Input Type -30 inHg to 100 psig
Maximum Ambient Temperature 85°C (185°F)
Maximum Storage Temperature 95°C (203°F)
Measurement Units PSIG
Number of Display Digits 3.5
Pressure Units Gauge can be factory-scaled to any engineering unit such as psi
Wetted Materials 316 Stainless Steel
Accuracy Value ±0.25%
Display Digit Height 13 mm
Maximum Amp Rating 0.005
Measurement Type Pressure
Minimum Storage Temperature -55°C (-67°F)
Repeatability +/-0.10% FSO or better
Sample Rate 3 readings per second
