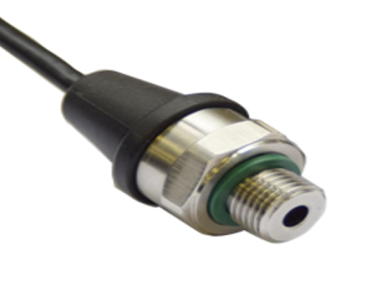

OEM Style, Compact Pressure Transducers with Cable | PX190

  • NG # 03874-HW-Omega-045

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This is a high-precision gauge pressure sensor with a measurement range of 0–75 psi and an accuracy of ±0.5%. It features a robust 17-4 stainless steel wetted material construction, an IP67-rated enclosure for harsh environments, and a 1/8-inch NPT male process connection. The sensor outputs a voltage signal (0.5–4.5 V) and operates on a 5 Vdc supply. It is temperature-compensated between 0–70 °C and can withstand storage temperatures from -20 °C to 100 °C. Thermal effects on span and zero are minimal at ±0.02 %FS/°C, ensuring reliable performance across its operating range. Lightweight (0.1 kg) and with a cable connection, it is suitable for accurate and durable pressure monitoring in industrial applications.

Specification

Accuracy± 0.5 %
Accuracy Class> 0.25%
Burst Pressure2x Full Scale or Maximum 1740 psi
Cable Length19 in
Compensated Temperature, Max70 °C
Compensated Temperature, Min0 °C
Electrical ConnectionCable
Electrical Output0.5 to 4.5 V
Enclosure RatingsIP67
Insulation Resistance≥100 MΩ @ 250 Vdc
Materials, Wetted17-4 Stainless Steel
Measurement Pressure TypeGauge
Measurement Pressure, Max75 psi
Measurement Pressure, Min0 psi
Operating Temperature, Max70 °C
Operating Temperature, Min0 °C
Output SignalVoltage
Process Connection Size1/8 in
Process Connection TypeNPT Male
Storage Temperature, Max100 °C
Storage Temperature, Min-20 °C
Supply Voltage5 Vdc
Thermal Effect on Span error, Max± 0.02 %FS/℃
Thermal Effect on Zero error, Max± 0.02 %FS/℃
Weight0.1 kg
