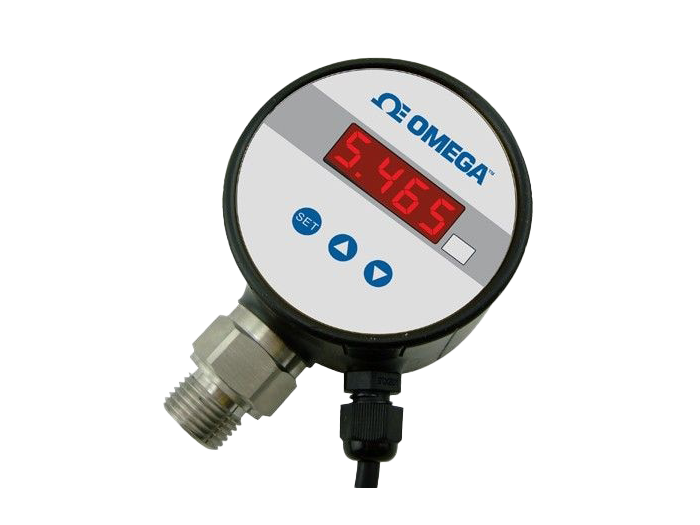

Omega Stainless Steel DC Loop Powered Digital Pressure Gauge

  • NG # 02014-HW-Omega-001

DPG110 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane.

Manufactured By :
omega
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

DPG110 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.

This flexible, simple to operate digital pressure gauge is safe, reliable and easy to maintain. The DPG110 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.

Intelligent Two-Wire System 4 to 20 mA Working Mode, 4-Digits 0.56' Digital LED Display. Full Digital Push-Button Calibration for Zero and Full Scale, No Potentiometers, Low-Temperature Drift. Reinforced Anti-Jamming Design is Suitable for the Electromagnetic Environment and Harsh Industrial Environments



Specification



Display Units Select one of the following: psi, bar, kPa, MPa, kg/cm2
Measuring Range 0 to 20 Mpa, (0 to 2900 psi)
Display Type/Size 4 Digit 0.56" LED screen
Accuracy 0.25% FS for gauge pressure >5psi
Power 12 to 32 Vdc
Stability ±0.2% FS per year
Output Signal 4 to 20 mA
Case Protection IP65
Operating Temperature  -30 to 80ºC (-22 to 176ºF)
Operating Humidity <90%
Medium Temperature -40 to 150ºC (-40 to 302ºF)
Overpressure Limits 3x rated pressure below 60 psi; 2x rated pressure from 100 to 1000psi; 1.5 x rated pressure over 1000 psi
Process Connection ¼" NPT, others consult Omega
Wetted Parts 316 SS threads, NBR O-ring
Storage Temperature -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity
